1. Overview

1.1. Introduction

pugixml is a light-weight C++ XML processing library. It consists of a DOM-like interface with rich traversal/modification capabilities, an extremely fast XML parser which constructs the DOM tree from an XML file/buffer, and an XPath 1.0 implementation for complex data-driven tree queries. Full Unicode support is also available, with two Unicode interface variants and conversions between different Unicode encodings (which happen automatically during parsing/saving). The library is extremely portable and easy to integrate and use. pugixml is developed and maintained since 2006 and has many users. All code is distributed under the MIT license, making it completely free to use in both open-source and proprietary applications.

pugixml enables very fast, convenient and memory-efficient XML document processing. However, since pugixml has a DOM parser, it can’t process XML documents that do not fit in memory; also the parser is a non-validating one, so if you need DTD or XML Schema validation, the library is not for you.

This is the complete manual for pugixml, which describes all features of the library in detail. If you want to start writing code as quickly as possible, you are advised to read the quick start guide first.

Note
No documentation is perfect; neither is this one. If you find errors or omissions, please don’t hesitate to submit an issue or open a pull request with a fix.

1.2. Feedback

If you believe you’ve found a bug in pugixml (bugs include compilation problems (errors/warnings), crashes, performance degradation and incorrect behavior), please file an issue via issue submission form. Be sure to include the relevant information so that the bug can be reproduced: the version of pugixml, compiler version and target architecture, the code that uses pugixml and exhibits the bug, etc.

Feature requests can be reported the same way as bugs, so if you’re missing some functionality in pugixml or if the API is rough in some places and you can suggest an improvement, file an issue. However please note that there are many factors when considering API changes (compatibility with previous versions, API redundancy, etc.), so generally features that can be implemented via a small function without pugixml modification are not accepted. However, all rules have exceptions.

If you have a contribution to pugixml, such as build script for some build system/IDE, or a well-designed set of helper functions, or a binding to some language other than C++, please file an issue or open a pull request. Your contribution has to be distributed under the terms of a license that’s compatible with pugixml license; i.e. GPL/LGPL licensed code is not accepted.

If filing an issue is not possible due to privacy or other concerns, you can contact pugixml author by e-mail directly: [email protected].

1.3. Acknowledgments

pugixml could not be developed without the help from many people; some of them are listed in this section. If you’ve played a part in pugixml development and you can not find yourself on this list, I’m truly sorry; please send me an e-mail so I can fix this.

Thanks to Kristen Wegner for pugxml parser, which was used as a basis for pugixml.

Thanks to Neville Franks for contributions to pugxml parser.

Thanks to Artyom Palvelev for suggesting a lazy gap contraction approach.

Thanks to Vyacheslav Egorov for documentation proofreading and fuzz testing.

1.4. License

The pugixml library is distributed under the MIT license:

Copyright (c) 2006-2023 Arseny Kapoulkine

Permission is hereby granted, free of charge, to any person
obtaining a copy of this software and associated documentation
files (the "Software"), to deal in the Software without
restriction, including without limitation the rights to use,
copy, modify, merge, publish, distribute, sublicense, and/or sell
copies of the Software, and to permit persons to whom the
Software is furnished to do so, subject to the following
conditions:

The above copyright notice and this permission notice shall be
included in all copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND,
EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT. IN NO EVENT SHALL THE AUTHORS OR COPYRIGHT
HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER LIABILITY,
WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING
FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR
OTHER DEALINGS IN THE SOFTWARE.

This means that you can freely use pugixml in your applications, both open-source and proprietary. If you use pugixml in a product, it is sufficient to add an acknowledgment like this to the product distribution:

This software is based on pugixml library (https://pugixml.org).
pugixml is Copyright (C) 2006-2023 Arseny Kapoulkine.

2. Installation

2.1. Getting pugixml

pugixml is distributed in source form. You can either download a source distribution or clone the Git repository.

2.1.1. Source distributions

You can download the latest source distribution as an archive:

pugixml-1.14.zip (Windows line endings) / pugixml-1.14.tar.gz (Unix line endings)

The distribution contains library source, documentation (the manual you’re reading now and the quick start guide) and some code examples. After downloading the distribution, install pugixml by extracting all files from the compressed archive.

If you need an older version, you can download it from the version archive.

2.1.2. Git repository

The Git repository is located at https://github.com/zeux/pugixml/. There is a Git tag "v{version}" for each version; also there is the "latest" tag, which always points to the latest stable release.

For example, to checkout the current version, you can use this command:

git clone https://github.com/zeux/pugixml
cd pugixml
git checkout v1.14

The repository contains library source, documentation, code examples and full unit test suite.

Use latest tag if you want to automatically get new versions. Use other tags if you want to switch to new versions only explicitly. Also please note that the master branch contains the work-in-progress version of the code; while this means that you can get new features and bug fixes from master without waiting for a new release, this also means that occasionally the code can be broken in some configurations.

2.1.3. Subversion repository

You can access the Git repository via Subversion using https://github.com/zeux/pugixml URL. For example, to checkout the current version, you can use this command:

svn checkout https://github.com/zeux/pugixml/tags/v1.14 pugixml

2.1.4. Packages

pugixml is available as a package via various package managers. Note that most packages are maintained separately from the main repository so they do not necessarily contain the latest version.

Here’s an incomplete list of pugixml packages in various systems:

2.2. Building pugixml

pugixml is distributed in source form without any pre-built binaries; you have to build them yourself.

The complete pugixml source consists of three files - one source file, pugixml.cpp, and two header files, pugixml.hpp and pugiconfig.hpp. pugixml.hpp is the primary header which you need to include in order to use pugixml classes/functions; pugiconfig.hpp is a supplementary configuration file (see Additional configuration options). The rest of this guide assumes that pugixml.hpp is either in the current directory or in one of include directories of your projects, so that #include "pugixml.hpp" can find the header; however you can also use relative path (i.e. #include "../libs/pugixml/src/pugixml.hpp") or include directory-relative path (i.e. #include <xml/thirdparty/pugixml/src/pugixml.hpp>).

2.2.1. Building pugixml as a part of another static library/executable

The easiest way to build pugixml is to compile the source file, pugixml.cpp, along with the existing library/executable. This process depends on the method of building your application; for example, if you’re using Microsoft Visual Studio [1], Apple Xcode, Code::Blocks or any other IDE, just add pugixml.cpp to one of your projects.

If you’re using Microsoft Visual Studio and the project has precompiled headers turned on, you’ll see the following error messages:

pugixml.cpp(3477) : fatal error C1010: unexpected end of file while looking for precompiled header. Did you forget to add '#include "stdafx.h"' to your source?

The correct way to resolve this is to disable precompiled headers for pugixml.cpp; you have to set "Create/Use Precompiled Header" option (Properties dialog → C/C++ → Precompiled Headers → Create/Use Precompiled Header) to "Not Using Precompiled Headers". You’ll have to do it for all project configurations/platforms (you can select Configuration "All Configurations" and Platform "All Platforms" before editing the option):

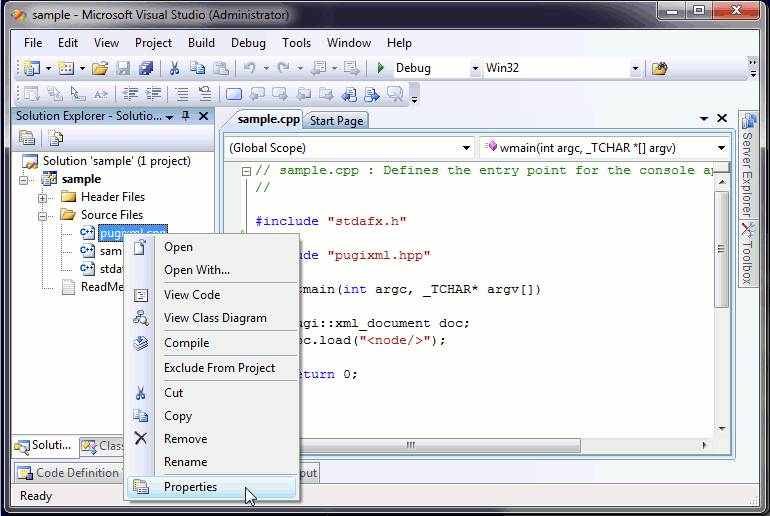

vs2005 pch1

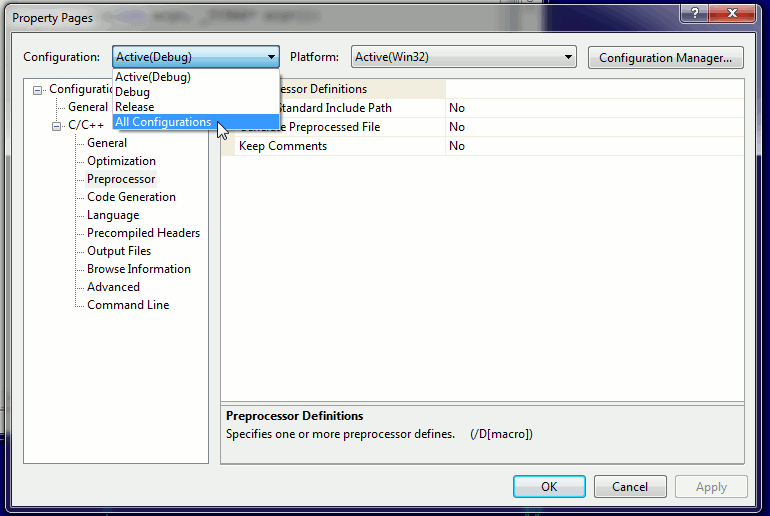

vs2005 pch2

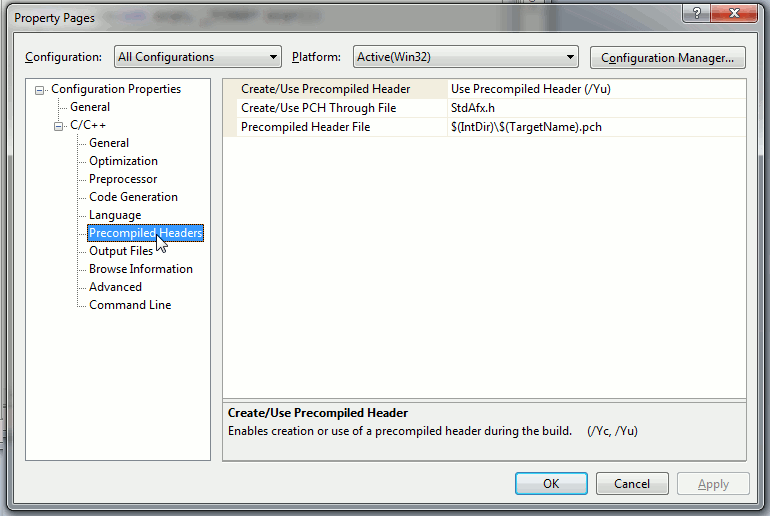

vs2005 pch3

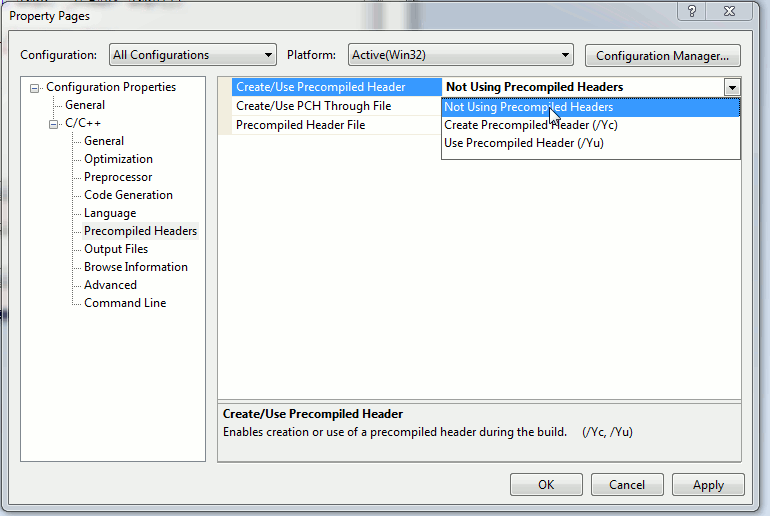

vs2005 pch4

2.2.2. Building pugixml as a standalone static library

It’s possible to compile pugixml as a standalone static library. This process depends on the method of building your application; pugixml distribution comes with project files for several popular IDEs/build systems. There are project files for Apple XCode, Code::Blocks, Codelite, Microsoft Visual Studio 2005, 2008, 2010+, and configuration scripts for CMake and premake4. You’re welcome to submit project files/build scripts for other software; see Feedback.

There are two projects for each version of Microsoft Visual Studio: one for dynamically linked CRT, which has a name like pugixml_vs2008.vcproj, and another one for statically linked CRT, which has a name like pugixml_vs2008_static.vcproj. You should select the version that matches the CRT used in your application; the default option for new projects created by Microsoft Visual Studio is dynamically linked CRT, so unless you changed the defaults, you should use the version with dynamic CRT (i.e. pugixml_vs2008.vcproj for Microsoft Visual Studio 2008).

In addition to adding pugixml project to your workspace, you’ll have to make sure that your application links with pugixml library. If you’re using Microsoft Visual Studio 2005/2008, you can add a dependency from your application project to pugixml one. If you’re using Microsoft Visual Studio 2010+, you’ll have to add a reference to your application project instead. For other IDEs/systems, consult the relevant documentation.

Microsoft Visual Studio 2005/2008 Microsoft Visual Studio 2010+

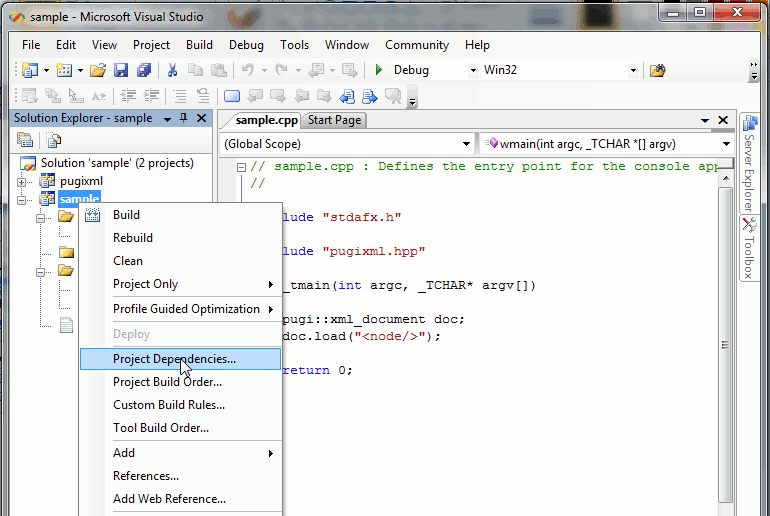

vs2005 link1

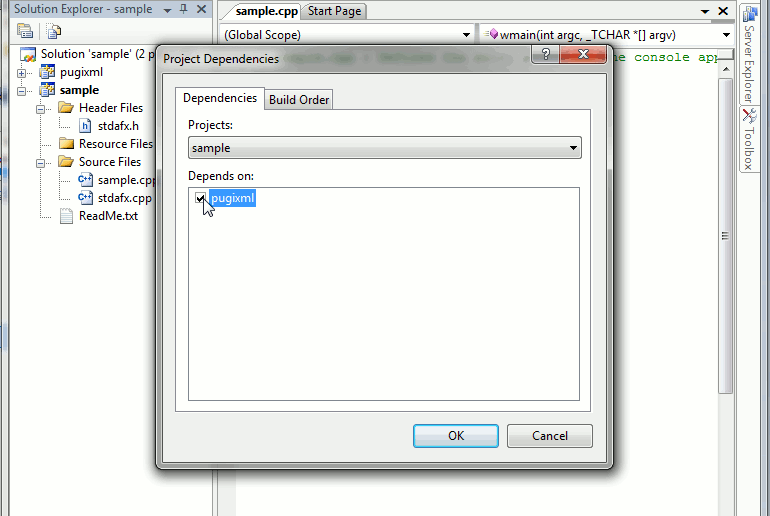

vs2005 link2

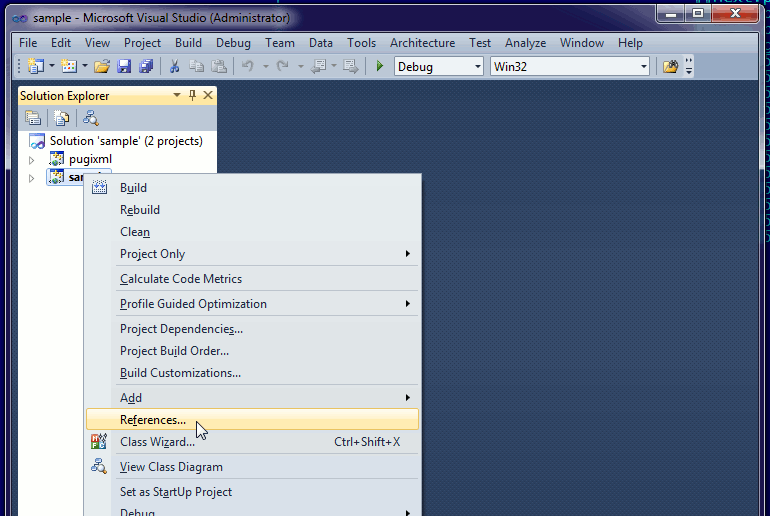

vs2010 link1

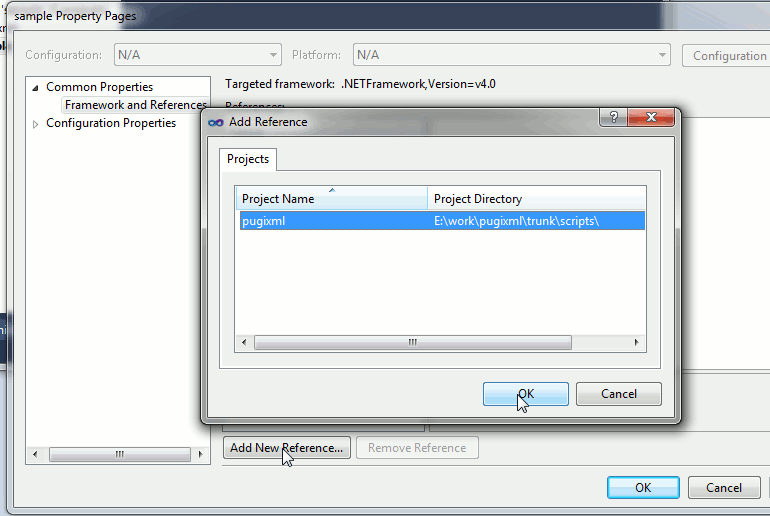

vs2010 link2

2.2.3. Building pugixml as a standalone shared library

It’s possible to compile pugixml as a standalone shared library. The process is usually similar to the static library approach; however, no preconfigured projects/scripts are included into pugixml distribution, so you’ll have to do it yourself. Generally, if you’re using GCC-based toolchain, the process does not differ from building any other library as DLL (adding -shared to compilation flags should suffice); if you’re using MSVC-based toolchain, you’ll have to explicitly mark exported symbols with a declspec attribute. You can do it by defining PUGIXML_API macro, i.e. via pugiconfig.hpp:

#ifdef _DLL
    #define PUGIXML_API __declspec(dllexport)
#else
    #define PUGIXML_API __declspec(dllimport)
#endif
Caution
If you’re using STL-related functions, you should use the shared runtime library to ensure that a single heap is used for STL allocations in your application and in pugixml; in MSVC, this means selecting the 'Multithreaded DLL' or 'Multithreaded Debug DLL' to 'Runtime library' property (/MD or /MDd linker switch). You should also make sure that your runtime library choice is consistent between different projects.

2.2.4. Using pugixml in header-only mode

It’s possible to use pugixml in header-only mode. This means that all source code for pugixml will be included in every translation unit that includes pugixml.hpp. This is how most of Boost and STL libraries work.

Note that there are advantages and drawbacks of this approach. Header mode may improve tree traversal/modification performance (because many simple functions will be inlined), if your compiler toolchain does not support link-time optimization, or if you have it turned off (with link-time optimization the performance should be similar to non-header mode). However, since compiler now has to compile pugixml source once for each translation unit that includes it, compilation times may increase noticeably. If you want to use pugixml in header mode but do not need XPath support, you can consider disabling it by using PUGIXML_NO_XPATH define to improve compilation time.

To enable header-only mode, you have to define PUGIXML_HEADER_ONLY. You can either do it in pugiconfig.hpp, or provide them via compiler command-line.

Note that it is safe to compile pugixml.cpp if PUGIXML_HEADER_ONLY is defined - so if you want to i.e. use header-only mode only in Release configuration, you can include pugixml.cpp in your project (see Building pugixml as a part of another static library/executable), and conditionally enable header-only mode in pugiconfig.hpp like this:

#ifndef _DEBUG
    #define PUGIXML_HEADER_ONLY
#endif

2.2.5. Additional configuration options

pugixml uses several defines to control the compilation process. There are two ways to define them: either put the needed definitions to pugiconfig.hpp (it has some examples that are commented out) or provide them via compiler command-line. Consistency is important: the definitions should match in all source files that include pugixml.hpp (including pugixml sources) throughout the application. Adding defines to pugiconfig.hpp lets you guarantee this, unless your macro definition is wrapped in preprocessor #if/#ifdef directive and this directive is not consistent. pugiconfig.hpp will never contain anything but comments, which means that when upgrading to a new version, you can safely leave your modified version intact.

PUGIXML_WCHAR_MODE define toggles between UTF-8 style interface (the in-memory text encoding is assumed to be UTF-8, most functions use char as character type) and UTF-16/32 style interface (the in-memory text encoding is assumed to be UTF-16/32, depending on wchar_t size, most functions use wchar_t as character type). See Unicode interface for more details.

PUGIXML_COMPACT define activates a different internal representation of document storage that is much more memory efficient for documents with a lot of markup (i.e. nodes and attributes), but is slightly slower to parse and access. For details see Compact mode.

PUGIXML_NO_XPATH define disables XPath. Both XPath interfaces and XPath implementation are excluded from compilation. This option is provided in case you do not need XPath functionality and need to save code space.

PUGIXML_NO_STL define disables use of STL in pugixml. The functions that operate on STL types are no longer present (i.e. load/save via iostream) if this macro is defined. This option is provided in case your target platform does not have a standard-compliant STL implementation.

PUGIXML_NO_EXCEPTIONS define disables use of exceptions in pugixml. This option is provided in case your target platform does not have exception handling capabilities.

PUGIXML_API, PUGIXML_CLASS and PUGIXML_FUNCTION defines let you specify custom attributes (i.e. declspec or calling conventions) for pugixml classes and non-member functions. In absence of PUGIXML_CLASS or PUGIXML_FUNCTION definitions, PUGIXML_API definition is used instead. For example, to specify fixed calling convention, you can define PUGIXML_FUNCTION to i.e. __fastcall. Another example is DLL import/export attributes in MSVC (see Building pugixml as a standalone shared library).

Note
In that example PUGIXML_API is inconsistent between several source files; this is an exception to the consistency rule.

PUGIXML_MEMORY_PAGE_SIZE, PUGIXML_MEMORY_OUTPUT_STACK and PUGIXML_MEMORY_XPATH_PAGE_SIZE can be used to customize certain important sizes to optimize memory usage for the application-specific patterns. For details see Memory consumption tuning.

PUGIXML_HAS_LONG_LONG define enables support for long long type in pugixml. This define is automatically enabled if your platform is known to have long long support (i.e. has C++11 support or uses a reasonably modern version of a known compiler); if pugixml does not recognize that your platform supports long long but in fact it does, you can enable the define manually.

2.3. Portability

pugixml is written in standard-compliant C++ with some compiler-specific workarounds where appropriate. pugixml is compatible with the C++11 standard, but does not require C++11 support. Each version is tested with a unit test suite with code coverage exceeding 99%.

pugixml runs on a variety of desktop platforms (including Microsoft Windows, Linux, FreeBSD, Apple MacOSX and Sun Solaris), game consoles (inclusing Microsoft Xbox 360, Microsoft Xbox One, Nintendo Wii, Sony Playstation Portable and Sony Playstation 3) and mobile platforms (including Android, iOS, BlackBerry, Samsung bada and Microsoft Windows CE).

pugixml supports various architectures, such as x86/x86-64, PowerPC, ARM, MIPS and SPARC. In general it should run on any architecture since it does not use architecture-specific code and does not rely on features such as unaligned memory access.

pugixml can be compiled using any C++ compiler; it was tested with all versions of Microsoft Visual C++ from 6.0 up to 2015, GCC from 3.4 up to 5.2, Clang from 3.2 up to 3.7, as well as a variety of other compilers (e.g. Borland C++, Digital Mars C++, Intel C++, Metrowerks CodeWarrior and PathScale). The code is written to avoid compilation warnings even on reasonably high warning levels.

Note that some platforms may have very bare-bones support of C++; in some cases you’ll have to use PUGIXML_NO_STL and/or PUGIXML_NO_EXCEPTIONS to compile without issues. This mostly applies to old game consoles and embedded systems.

3. Document object model

pugixml stores XML data in DOM-like way: the entire XML document (both document structure and element data) is stored in memory as a tree. The tree can be loaded from a character stream (file, string, C++ I/O stream), then traversed with the special API or XPath expressions. The whole tree is mutable: both node structure and node/attribute data can be changed at any time. Finally, the result of document transformations can be saved to a character stream (file, C++ I/O stream or custom transport).

3.1. Tree structure

The XML document is represented with a tree data structure. The root of the tree is the document itself, which corresponds to C++ type xml_document. Document has one or more child nodes, which correspond to C++ type xml_node. Nodes have different types; depending on a type, a node can have a collection of child nodes, a collection of attributes, which correspond to C++ type xml_attribute, and some additional data (i.e. name).

The tree nodes can be of one of the following types (which together form the enumeration xml_node_type):

  • Document node (node_document) - this is the root of the tree, which consists of several child nodes. This node corresponds to xml_document class; note that xml_document is a sub-class of xml_node, so the entire node interface is also available. However, document node is special in several ways, which are covered below. There can be only one document node in the tree; document node does not have any XML representation. Document generally has one child element node (see document_element()), although documents parsed from XML fragments (see parse_fragment) can have more than one.

  • Element/tag node (node_element) - this is the most common type of node, which represents XML elements. Element nodes have a name, a collection of attributes and a collection of child nodes (both of which may be empty). The attribute is a simple name/value pair. The example XML representation of element nodes is as follows:

    <node attr="value"><child/></node>

    There are two element nodes here: one has name "node", single attribute "attr" and single child "child", another has name "child" and does not have any attributes or child nodes.

  • Plain character data nodes (node_pcdata) represent plain text in XML. PCDATA nodes have a value, but do not have a name or children/attributes. Note that plain character data is not a part of the element node but instead has its own node; an element node can have several child PCDATA nodes. The example XML representation of text nodes is as follows:

    <node> text1 <child/> text2 </node>

    Here "node" element has three children, two of which are PCDATA nodes with values " text1 " and " text2 ".

  • Character data nodes (node_cdata) represent text in XML that is quoted in a special way. CDATA nodes do not differ from PCDATA nodes except in XML representation - the above text example looks like this with CDATA:

    <node> <![CDATA[text1]]> <child/> <![CDATA[text2]]> </node>

    CDATA nodes make it easy to include non-escaped <, & and > characters in plain text. CDATA value can not contain the character sequence ]]>, since it is used to determine the end of node contents.

  • Comment nodes (node_comment) represent comments in XML. Comment nodes have a value, but do not have a name or children/attributes. The example XML representation of a comment node is as follows:

    <!-- comment text -->

    Here the comment node has value "comment text". By default comment nodes are treated as non-essential part of XML markup and are not loaded during XML parsing. You can override this behavior with parse_comments flag.

  • Processing instruction node (node_pi) represent processing instructions (PI) in XML. PI nodes have a name and an optional value, but do not have children/attributes. The example XML representation of a PI node is as follows:

    <?name value?>

    Here the name (also called PI target) is "name", and the value is "value". By default PI nodes are treated as non-essential part of XML markup and are not loaded during XML parsing. You can override this behavior with parse_pi flag.

  • Declaration node (node_declaration) represents document declarations in XML. Declaration nodes have a name ("xml") and an optional collection of attributes, but do not have value or children. There can be only one declaration node in a document; moreover, it should be the topmost node (its parent should be the document). The example XML representation of a declaration node is as follows:

    <?xml version="1.0"?>

    Here the node has name "xml" and a single attribute with name "version" and value "1.0". By default declaration nodes are treated as non-essential part of XML markup and are not loaded during XML parsing. You can override this behavior with parse_declaration flag. Also, by default a dummy declaration is output when XML document is saved unless there is already a declaration in the document; you can disable this with format_no_declaration flag.

  • Document type declaration node (node_doctype) represents document type declarations in XML. Document type declaration nodes have a value, which corresponds to the entire document type contents; no additional nodes are created for inner elements like <!ENTITY>. There can be only one document type declaration node in a document; moreover, it should be the topmost node (its parent should be the document). The example XML representation of a document type declaration node is as follows:

    <!DOCTYPE greeting [ <!ELEMENT greeting (#PCDATA)> ]>

    Here the node has value "greeting [ <!ELEMENT greeting (#PCDATA)> ]". By default document type declaration nodes are treated as non-essential part of XML markup and are not loaded during XML parsing. You can override this behavior with parse_doctype flag.

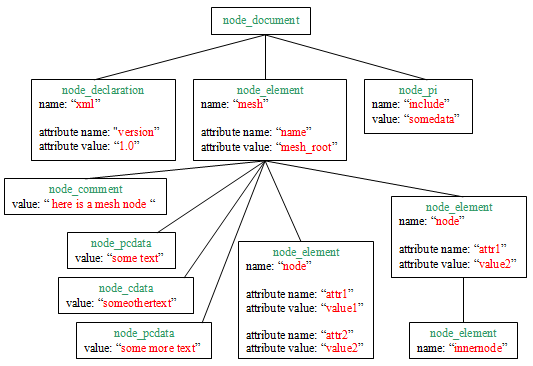

Finally, here is a complete example of XML document and the corresponding tree representation (samples/tree.xml):

<?xml version="1.0"?>
<mesh name="mesh_root">
    <!-- here is a mesh node -->
    some text
    <![CDATA[someothertext]]>
    some more text
    <node attr1="value1" attr2="value2" />
    <node attr1="value2">
        <innernode/>
    </node>
</mesh>
<?include somedata?>
dom tree

3.2. C++ interface

Note
All pugixml classes and functions are located in the pugi namespace; you have to either use explicit name qualification (i.e. pugi::xml_node), or to gain access to relevant symbols via using directive (i.e. using pugi::xml_node; or using namespace pugi;). The namespace will be omitted from all declarations in this documentation hereafter; all code examples will use fully qualified names.

Despite the fact that there are several node types, there are only three C++ classes representing the tree (xml_document, xml_node, xml_attribute); some operations on xml_node are only valid for certain node types. The classes are described below.

xml_document is the owner of the entire document structure; it is a non-copyable class. The interface of xml_document consists of loading functions (see Loading document), saving functions (see Saving document) and the entire interface of xml_node, which allows for document inspection and/or modification. Note that while xml_document is a sub-class of xml_node, xml_node is not a polymorphic type; the inheritance is present only to simplify usage. Alternatively you can use the document_element function to get the element node that’s the immediate child of the document.

Default constructor of xml_document initializes the document to the tree with only a root node (document node). You can then populate it with data using either tree modification functions or loading functions; all loading functions destroy the previous tree with all occupied memory, which puts existing node/attribute handles for this document to invalid state. If you want to destroy the previous tree, you can use the xml_document::reset function; it destroys the tree and replaces it with either an empty one or a copy of the specified document. Destructor of xml_document also destroys the tree, thus the lifetime of the document object should exceed the lifetimes of any node/attribute handles that point to the tree.

Caution
While technically node/attribute handles can be alive when the tree they’re referring to is destroyed, calling any member function for these handles results in undefined behavior. Thus it is recommended to make sure that the document is destroyed only after all references to its nodes/attributes are destroyed.

xml_node is the handle to document node; it can point to any node in the document, including the document node itself. There is a common interface for nodes of all types; the actual node type can be queried via the xml_node::type() method. Note that xml_node is only a handle to the actual node, not the node itself - you can have several xml_node handles pointing to the same underlying object. Destroying xml_node handle does not destroy the node and does not remove it from the tree. The size of xml_node is equal to that of a pointer, so it is nothing more than a lightweight wrapper around a pointer; you can safely pass or return xml_node objects by value without additional overhead.

There is a special value of xml_node type, known as null node or empty node (such nodes have type node_null). It does not correspond to any node in any document, and thus resembles null pointer. However, all operations are defined on empty nodes; generally the operations don’t do anything and return empty nodes/attributes or empty strings as their result (see documentation for specific functions for more detailed information). This is useful for chaining calls; i.e. you can get the grandparent of a node like so: node.parent().parent(); if a node is a null node or it does not have a parent, the first parent() call returns null node; the second parent() call then also returns null node, which makes error handling easier.

xml_attribute is the handle to an XML attribute; it has the same semantics as xml_node, i.e. there can be several xml_attribute handles pointing to the same underlying object and there is a special null attribute value, which propagates to function results.

Both xml_node and xml_attribute have the default constructor which initializes them to null objects.

xml_node and xml_attribute try to behave like pointers, that is, they can be compared with other objects of the same type, making it possible to use them as keys in associative containers. All handles to the same underlying object are equal, and any two handles to different underlying objects are not equal. Null handles only compare as equal to null handles. The result of relational comparison can not be reliably determined from the order of nodes in file or in any other way. Do not use relational comparison operators except for search optimization (i.e. associative container keys).

If you want to use xml_node or xml_attribute objects as keys in hash-based associative containers, you can use the hash_value member functions. They return the hash values that are guaranteed to be the same for all handles to the same underlying object. The hash value for null handles is 0. Note that hash value does not depend on the content of the node, only on the location of the underlying structure in memory - this means that loading the same document twice will likely produce different hash values, and copying the node will not preserve the hash.

Finally handles can be implicitly cast to boolean-like objects, so that you can test if the node/attribute is empty with the following code: if (node) { …​ } or if (!node) { …​ } else { …​ }. Alternatively you can check if a given xml_node/xml_attribute handle is null by calling the following methods:

bool xml_attribute::empty() const;
bool xml_node::empty() const;

Nodes and attributes do not exist without a document tree, so you can’t create them without adding them to some document. Once underlying node/attribute objects are destroyed, the handles to those objects become invalid. While this means that destruction of the entire tree invalidates all node/attribute handles, it also means that destroying a subtree (by calling xml_node::remove_child) or removing an attribute invalidates the corresponding handles. There is no way to check handle validity; you have to ensure correctness through external mechanisms.

3.3. Unicode interface

There are two choices of interface and internal representation when configuring pugixml: you can either choose the UTF-8 (also called char) interface or UTF-16/32 (also called wchar_t) one. The choice is controlled via PUGIXML_WCHAR_MODE define; you can set it via pugiconfig.hpp or via preprocessor options, as discussed in Additional configuration options. If this define is set, the wchar_t interface is used; otherwise (by default) the char interface is used. The exact wide character encoding is assumed to be either UTF-16 or UTF-32 and is determined based on the size of wchar_t type.

Note
If the size of wchar_t is 2, pugixml assumes UTF-16 encoding instead of UCS-2, which means that some characters are represented as two code points.

All tree functions that work with strings work with either C-style null terminated strings or STL strings of the selected character type. For example, node name accessors look like this in char mode:

const char* xml_node::name() const;
bool xml_node::set_name(const char* value);

and like this in wchar_t mode:

const wchar_t* xml_node::name() const;
bool xml_node::set_name(const wchar_t* value);

There is a special type, pugi::char_t, that is defined as the character type and depends on the library configuration; it will be also used in the documentation hereafter. There is also a type pugi::string_t, which is defined as the STL string of the character type; it corresponds to std::string in char mode and to std::wstring in wchar_t mode.

In addition to the interface, the internal implementation changes to store XML data as pugi::char_t; this means that these two modes have different memory usage characteristics - generally UTF-8 mode is more memory and performance efficient, especially if sizeof(wchar_t) is 4. The conversion to pugi::char_t upon document loading and from pugi::char_t upon document saving happen automatically, which also carries minor performance penalty. The general advice however is to select the character mode based on usage scenario, i.e. if UTF-8 is inconvenient to process and most of your XML data is non-ASCII, wchar_t mode is probably a better choice.

There are cases when you’ll have to convert string data between UTF-8 and wchar_t encodings; the following helper functions are provided for such purposes:

std::string as_utf8(const wchar_t* str);
std::wstring as_wide(const char* str);

Both functions accept a null-terminated string as an argument str, and return the converted string. as_utf8 performs conversion from UTF-16/32 to UTF-8; as_wide performs conversion from UTF-8 to UTF-16/32. Invalid UTF sequences are silently discarded upon conversion. str has to be a valid string; passing null pointer results in undefined behavior. There are also two overloads with the same semantics which accept a string as an argument:

std::string as_utf8(const std::wstring& str);
std::wstring as_wide(const std::string& str);
Note

Most examples in this documentation assume char interface and therefore will not compile with PUGIXML_WCHAR_MODE. This is done to simplify the documentation; usually the only changes you’ll have to make is to pass wchar_t string literals, i.e. instead of

xml_node node = doc.child("bookstore").find_child_by_attribute("book", "id", "12345");

you’ll have to use

xml_node node = doc.child(L"bookstore").find_child_by_attribute(L"book", L"id", L"12345");

3.4. Thread-safety guarantees

Almost all functions in pugixml have the following thread-safety guarantees:

  • it is safe to call free (non-member) functions from multiple threads

  • it is safe to perform concurrent read-only accesses to the same tree (all constant member functions do not modify the tree)

  • it is safe to perform concurrent read/write accesses, if there is only one read or write access to the single tree at a time

Concurrent modification and traversing of a single tree requires synchronization, for example via reader-writer lock. Modification includes altering document structure and altering individual node/attribute data, i.e. changing names/values.

The only exception is set_memory_management_functions; it modifies global variables and as such is not thread-safe. Its usage policy has more restrictions, see Custom memory allocation/deallocation functions.

3.5. Exception guarantees

With the exception of XPath, pugixml itself does not throw any exceptions. Additionally, most pugixml functions have a no-throw exception guarantee.

This is not applicable to functions that operate on STL strings or IOstreams; such functions have either strong guarantee (functions that operate on strings) or basic guarantee (functions that operate on streams). Also functions that call user-defined callbacks (i.e. xml_node::traverse or xml_node::find_node) do not provide any exception guarantees beyond the ones provided by the callback.

If exception handling is not disabled with PUGIXML_NO_EXCEPTIONS define, XPath functions may throw xpath_exception on parsing errors; also, XPath functions may throw std::bad_alloc in low memory conditions. Still, XPath functions provide strong exception guarantee.

3.6. Memory management

pugixml requests the memory needed for document storage in big chunks, and allocates document data inside those chunks. This section discusses replacing functions used for chunk allocation and internal memory management implementation.

3.6.1. Custom memory allocation/deallocation functions

All memory for tree structure, tree data and XPath objects is allocated via globally specified functions, which default to malloc/free. You can set your own allocation functions with set_memory_management function. The function interfaces are the same as that of malloc/free:

typedef void* (*allocation_function)(size_t size);
typedef void (*deallocation_function)(void* ptr);

You can use the following accessor functions to change or get current memory management functions:

void set_memory_management_functions(allocation_function allocate, deallocation_function deallocate);
allocation_function get_memory_allocation_function();
deallocation_function get_memory_deallocation_function();

Allocation function is called with the size (in bytes) as an argument and should return a pointer to a memory block with alignment that is suitable for storage of primitive types (usually a maximum of void* and double types alignment is sufficient) and size that is greater than or equal to the requested one. If the allocation fails, the function has to either return null pointer or to throw an exception.

Deallocation function is called with the pointer that was returned by some call to allocation function; it is never called with a null pointer. If memory management functions are not thread-safe, library thread safety is not guaranteed.

This is a simple example of custom memory management (samples/custom_memory_management.cpp):

void* custom_allocate(size_t size)
{
    return new (std::nothrow) char[size];
}

void custom_deallocate(void* ptr)
{
    delete[] static_cast<char*>(ptr);
}
pugi::set_memory_management_functions(custom_allocate, custom_deallocate);

When setting new memory management functions, care must be taken to make sure that there are no live pugixml objects. Otherwise when the objects are destroyed, the new deallocation function will be called with the memory obtained by the old allocation function, resulting in undefined behavior.

3.6.2. Memory consumption tuning

There are several important buffering optimizations in pugixml that rely on predefined constants. These constants have default values that were tuned for common usage patterns; for some applications, changing these constants might improve memory consumption or increase performance. Changing these constants is not recommended unless their default values result in visible problems.

These constants can be tuned via configuration defines, as discussed in Additional configuration options; it is recommended to set them in pugiconfig.hpp.

  • PUGIXML_MEMORY_PAGE_SIZE controls the page size for document memory allocation. Memory for node/attribute objects is allocated in pages of the specified size. The default size is 32 Kb; for some applications the size is too large (i.e. embedded systems with little heap space or applications that keep lots of XML documents in memory). A minimum size of 1 Kb is recommended.

  • PUGIXML_MEMORY_OUTPUT_STACK controls the cumulative stack space required to output the node. Any output operation (i.e. saving a subtree to file) uses an internal buffering scheme for performance reasons. The default size is 10 Kb; if you’re using node output from threads with little stack space, decreasing this value can prevent stack overflows. A minimum size of 1 Kb is recommended.

  • PUGIXML_MEMORY_XPATH_PAGE_SIZE controls the page size for XPath memory allocation. Memory for XPath query objects as well as internal memory for XPath evaluation is allocated in pages of the specified size. The default size is 4 Kb; if you have a lot of resident XPath query objects, you might need to decrease the size to improve memory consumption. A minimum size of 256 bytes is recommended.

3.6.3. Document memory management internals

Constructing a document object using the default constructor does not result in any allocations; document node is stored inside the xml_document object.

When the document is loaded from file/buffer, unless an inplace loading function is used (see Loading document from memory), a complete copy of character stream is made; all names/values of nodes and attributes are allocated in this buffer. This buffer is allocated via a single large allocation and is only freed when document memory is reclaimed (i.e. if the xml_document object is destroyed or if another document is loaded in the same object). Also when loading from file or stream, an additional large allocation may be performed if encoding conversion is required; a temporary buffer is allocated, and it is freed before load function returns.

All additional memory, such as memory for document structure (node/attribute objects) and memory for node/attribute names/values is allocated in pages on the order of 32 Kb; actual objects are allocated inside the pages using a memory management scheme optimized for fast allocation/deallocation of many small objects. Because of the scheme specifics, the pages are only destroyed if all objects inside them are destroyed; also, generally destroying an object does not mean that subsequent object creation will reuse the same memory. This means that it is possible to devise a usage scheme which will lead to higher memory usage than expected; one example is adding a lot of nodes, and them removing all even numbered ones; not a single page is reclaimed in the process. However this is an example specifically crafted to produce unsatisfying behavior; in all practical usage scenarios the memory consumption is less than that of a general-purpose allocator because allocation meta-data is very small in size.

3.6.4. Compact mode

By default nodes and attributes are optimized for efficiency of access. This can cause them to take a significant amount of memory - for documents with a lot of nodes and not a lot of contents (short attribute values/node text), and depending on the pointer size, the document structure can take noticeably more memory than the document itself (e.g. on a 64-bit platform in UTF-8 mode a markup-heavy document with the file size of 2.1 Mb can use 2.1 Mb for document buffer and 8.3 Mb for document structure).

If you are processing big documents or your platform is memory constrained and you’re willing to sacrifice a bit of performance for memory, you can compile pugixml with PUGIXML_COMPACT define which will activate compact mode. Compact mode uses a different representation of the document structure that assumes locality of reference between nodes and attributes to optimize memory usage. As a result you get significantly smaller node/attribute objects; usually most objects in most documents don’t require additional storage, but in the worst case - if assumptions about locality of reference don’t hold - additional memory will be allocated to store the extra data required.

The compact storage supports all existing operations - including tree modification - with the same amortized complexity (that is, all basic document manipulations are still O(1) on average). The operations are slightly slower; you can usually expect 10-50% slowdown in terms of processing time unless your processing was memory-bound.

On 32-bit architectures document structure in compact mode is typically reduced by around 2.5x; on 64-bit architectures the ratio is around 5x. Thus for big markup-heavy documents compact mode can make the difference between the processing of a multi-gigabyte document running completely from RAM vs requiring swapping to disk. Even if the document fits into memory, compact storage can use CPU caches more efficiently by taking less space and causing less cache/TLB misses.

4. Loading document

pugixml provides several functions for loading XML data from various places - files, C++ iostreams, memory buffers. All functions use an extremely fast non-validating parser. This parser is not fully W3C conformant - it can load any valid XML document, but does not perform some well-formedness checks. While considerable effort is made to reject invalid XML documents, some validation is not performed for performance reasons. Also some XML transformations (i.e. EOL handling or attribute value normalization) can impact parsing speed and thus can be disabled. However for vast majority of XML documents there is no performance difference between different parsing options. Parsing options also control whether certain XML nodes are parsed; see Parsing options for more information.

XML data is always converted to internal character format (see Unicode interface) before parsing. pugixml supports all popular Unicode encodings (UTF-8, UTF-16 (big and little endian), UTF-32 (big and little endian); UCS-2 is naturally supported since it’s a strict subset of UTF-16) as well as some non-Unicode encodings (Latin-1) and handles all encoding conversions automatically. Unless explicit encoding is specified, loading functions perform automatic encoding detection based on source XML data, so in most cases you do not have to specify document encoding. Encoding conversion is described in more detail in Encodings.

4.1. Loading document from file

The most common source of XML data is files; pugixml provides dedicated functions for loading an XML document from file:

xml_parse_result xml_document::load_file(const char* path, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
xml_parse_result xml_document::load_file(const wchar_t* path, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);

These functions accept the file path as its first argument, and also two optional arguments, which specify parsing options (see Parsing options) and input data encoding (see Encodings). The path has the target operating system format, so it can be a relative or absolute one, it should have the delimiters of the target system, it should have the exact case if the target file system is case-sensitive, etc.

File path is passed to the system file opening function as is in case of the first function (which accepts const char* path); the second function either uses a special file opening function if it is provided by the runtime library or converts the path to UTF-8 and uses the system file opening function.

load_file destroys the existing document tree and then tries to load the new tree from the specified file. The result of the operation is returned in an xml_parse_result object; this object contains the operation status and the related information (i.e. last successfully parsed position in the input file, if parsing fails). See Handling parsing errors for error handling details.

This is an example of loading XML document from file (samples/load_file.cpp):

pugi::xml_document doc;

pugi::xml_parse_result result = doc.load_file("tree.xml");

std::cout << "Load result: " << result.description() << ", mesh name: " << doc.child("mesh").attribute("name").value() << std::endl;

4.2. Loading document from memory

Sometimes XML data should be loaded from some other source than a file, i.e. HTTP URL; also you may want to load XML data from file using non-standard functions, i.e. to use your virtual file system facilities or to load XML from GZip-compressed files. All these scenarios require loading document from memory. First you should prepare a contiguous memory block with all XML data; then you have to invoke one of buffer loading functions. These functions will handle the necessary encoding conversions, if any, and then will parse the data into the corresponding XML tree. There are several buffer loading functions, which differ in the behavior and thus in performance/memory usage:

xml_parse_result xml_document::load_buffer(const void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
xml_parse_result xml_document::load_buffer_inplace(void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
xml_parse_result xml_document::load_buffer_inplace_own(void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);

All functions accept the buffer which is represented by a pointer to XML data, contents, and data size in bytes. Also there are two optional arguments, which specify parsing options (see Parsing options) and input data encoding (see Encodings). The buffer does not have to be zero-terminated.

load_buffer function works with immutable buffer - it does not ever modify the buffer. Because of this restriction it has to create a private buffer and copy XML data to it before parsing (applying encoding conversions if necessary). This copy operation carries a performance penalty, so inplace functions are provided - load_buffer_inplace and load_buffer_inplace_own store the document data in the buffer, modifying it in the process. In order for the document to stay valid, you have to make sure that the buffer’s lifetime exceeds that of the tree if you’re using inplace functions. In addition to that, load_buffer_inplace does not assume ownership of the buffer, so you’ll have to destroy it yourself; load_buffer_inplace_own assumes ownership of the buffer and destroys it once it is not needed. This means that if you’re using load_buffer_inplace_own, you have to allocate memory with pugixml allocation function (you can get it via get_memory_allocation_function).

The best way from the performance/memory point of view is to load document using load_buffer_inplace_own; this function has maximum control of the buffer with XML data so it is able to avoid redundant copies and reduce peak memory usage while parsing. This is the recommended function if you have to load the document from memory and performance is critical.

There is also a simple helper function for cases when you want to load the XML document from null-terminated character string:

xml_parse_result xml_document::load_string(const char_t* contents, unsigned int options = parse_default);

It is equivalent to calling load_buffer with size being either strlen(contents) or wcslen(contents) * sizeof(wchar_t), depending on the character type. This function assumes native encoding for input data, so it does not do any encoding conversion. In general, this function is fine for loading small documents from string literals, but has more overhead and less functionality than the buffer loading functions.

This is an example of loading XML document from memory using different functions (samples/load_memory.cpp):

const char source[] = "<mesh name='sphere'><bounds>0 0 1 1</bounds></mesh>";
size_t size = sizeof(source);
// You can use load_buffer to load document from immutable memory block:
pugi::xml_parse_result result = doc.load_buffer(source, size);
// You can use load_buffer_inplace to load document from mutable memory block; the block's lifetime must exceed that of document
char* buffer = new char[size];
memcpy(buffer, source, size);

// The block can be allocated by any method; the block is modified during parsing
pugi::xml_parse_result result = doc.load_buffer_inplace(buffer, size);

// You have to destroy the block yourself after the document is no longer used
delete[] buffer;
// You can use load_buffer_inplace_own to load document from mutable memory block and to pass the ownership of this block
// The block has to be allocated via pugixml allocation function - using i.e. operator new here is incorrect
char* buffer = static_cast<char*>(pugi::get_memory_allocation_function()(size));
memcpy(buffer, source, size);

// The block will be deleted by the document
pugi::xml_parse_result result = doc.load_buffer_inplace_own(buffer, size);
// You can use load to load document from null-terminated strings, for example literals:
pugi::xml_parse_result result = doc.load_string("<mesh name='sphere'><bounds>0 0 1 1</bounds></mesh>");

4.3. Loading document from C++ IOstreams

To enhance interoperability, pugixml provides functions for loading document from any object which implements C++ std::istream interface. This allows you to load documents from any standard C++ stream (i.e. file stream) or any third-party compliant implementation (i.e. Boost Iostreams). There are two functions, one works with narrow character streams, another handles wide character ones:

xml_parse_result xml_document::load(std::istream& stream, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
xml_parse_result xml_document::load(std::wistream& stream, unsigned int options = parse_default);

load with std::istream argument loads the document from stream from the current read position to the end, treating the stream contents as a byte stream of the specified encoding (with encoding autodetection as necessary). Thus calling xml_document::load on an opened std::ifstream object is equivalent to calling xml_document::load_file.

load with std::wstream argument treats the stream contents as a wide character stream (encoding is always encoding_wchar). Because of this, using load with wide character streams requires careful (usually platform-specific) stream setup (i.e. using the imbue function). Generally use of wide streams is discouraged, however it provides you the ability to load documents from non-Unicode encodings, i.e. you can load Shift-JIS encoded data if you set the correct locale.

This is a simple example of loading XML document from file using streams (samples/load_stream.cpp); read the sample code for more complex examples involving wide streams and locales:

std::ifstream stream("weekly-utf-8.xml");
pugi::xml_parse_result result = doc.load(stream);

4.4. Handling parsing errors

All document loading functions return the parsing result via xml_parse_result object. It contains parsing status, the offset of last successfully parsed character from the beginning of the source stream, and the encoding of the source stream:

struct xml_parse_result
{
    xml_parse_status status;
    ptrdiff_t offset;
    xml_encoding encoding;

    operator bool() const;
    const char* description() const;
};

Parsing status is represented as the xml_parse_status enumeration and can be one of the following:

  • status_ok means that no error was encountered during parsing; the source stream represents the valid XML document which was fully parsed and converted to a tree.

  • status_file_not_found is only returned by load_file function and means that file could not be opened.

  • status_io_error is returned by load_file function and by load functions with std::istream/std::wstream arguments; it means that some I/O error has occurred during reading the file/stream.

  • status_out_of_memory means that there was not enough memory during some allocation; any allocation failure during parsing results in this error.

  • status_internal_error means that something went horribly wrong; currently this error does not occur

  • status_unrecognized_tag means that parsing stopped due to a tag with either an empty name or a name which starts with incorrect character, such as #.

  • status_bad_pi means that parsing stopped due to incorrect document declaration/processing instruction

  • status_bad_comment, status_bad_cdata, status_bad_doctype and status_bad_pcdata mean that parsing stopped due to the invalid construct of the respective type

  • status_bad_start_element means that parsing stopped because starting tag either had no closing > symbol or contained some incorrect symbol

  • status_bad_attribute means that parsing stopped because there was an incorrect attribute, such as an attribute without value or with value that is not quoted (note that <node attr=1> is incorrect in XML)

  • status_bad_end_element means that parsing stopped because ending tag had incorrect syntax (i.e. extra non-whitespace symbols between tag name and >)

  • status_end_element_mismatch means that parsing stopped because the closing tag did not match the opening one (i.e. <node></nedo>) or because some tag was not closed at all

  • status_no_document_element means that no element nodes were discovered during parsing; this usually indicates an empty or invalid document

description() member function can be used to convert parsing status to a string; the returned message is always in English, so you’ll have to write your own function if you need a localized string. However please note that the exact messages returned by description() function may change from version to version, so any complex status handling should be based on status value. Note that description() returns a char string even in PUGIXML_WCHAR_MODE; you’ll have to call as_wide to get the wchar_t string.

If parsing failed because the source data was not a valid XML, the resulting tree is not destroyed - despite the fact that load function returns error, you can use the part of the tree that was successfully parsed. Obviously, the last element may have an unexpected name/value; for example, if the attribute value does not end with the necessary quotation mark, like in <node attr="value>some data</node> example, the value of attribute attr will contain the string value>some data</node>.

In addition to the status code, parsing result has an offset member, which contains the offset of last successfully parsed character if parsing failed because of an error in source data; otherwise offset is 0. For parsing efficiency reasons, pugixml does not track the current line during parsing; this offset is in units of pugi::char_t (bytes for character mode, wide characters for wide character mode). Many text editors support 'Go To Position' feature - you can use it to locate the exact error position. Alternatively, if you’re loading the document from memory, you can display the error chunk along with the error description (see the example code below).

Caution
Offset is calculated in the XML buffer in native encoding; if encoding conversion is performed during parsing, offset can not be used to reliably track the error position.

Parsing result also has an encoding member, which can be used to check that the source data encoding was correctly guessed. It is equal to the exact encoding used during parsing (i.e. with the exact endianness); see Encodings for more information.

Parsing result object can be implicitly converted to bool; if you do not want to handle parsing errors thoroughly, you can just check the return value of load functions as if it was a bool: if (doc.load_file("file.xml")) { …​ } else { …​ }.

This is an example of handling loading errors (samples/load_error_handling.cpp):

pugi::xml_document doc;
pugi::xml_parse_result result = doc.load_string(source);

if (result)
{
    std::cout << "XML [" << source << "] parsed without errors, attr value: [" << doc.child("node").attribute("attr").value() << "]\n\n";
}
else
{
    std::cout << "XML [" << source << "] parsed with errors, attr value: [" << doc.child("node").attribute("attr").value() << "]\n";
    std::cout << "Error description: " << result.description() << "\n";
    std::cout << "Error offset: " << result.offset << " (error at [..." << (source + result.offset) << "]\n\n";
}

4.5. Parsing options

All document loading functions accept the optional parameter options. This is a bitmask that customizes the parsing process: you can select the node types that are parsed and various transformations that are performed with the XML text. Disabling certain transformations can improve parsing performance for some documents; however, the code for all transformations is very well optimized, and thus the majority of documents won’t get any performance benefit. As a rule of thumb, only modify parsing flags if you want to get some nodes in the document that are excluded by default (i.e. declaration or comment nodes).

Note
You should use the usual bitwise arithmetics to manipulate the bitmask: to enable a flag, use mask | flag; to disable a flag, use mask & ~flag.

These flags control the resulting tree contents:

  • parse_declaration determines if XML document declaration (node with type node_declaration) is to be put in DOM tree. If this flag is off, it is not put in the tree, but is still parsed and checked for correctness. This flag is off by default.

  • parse_doctype determines if XML document type declaration (node with type node_doctype) is to be put in DOM tree. If this flag is off, it is not put in the tree, but is still parsed and checked for correctness. This flag is off by default.

  • parse_pi determines if processing instructions (nodes with type node_pi) are to be put in DOM tree. If this flag is off, they are not put in the tree, but are still parsed and checked for correctness. Note that <?xml …​?> (document declaration) is not considered to be a PI. This flag is off by default.

  • parse_comments determines if comments (nodes with type node_comment) are to be put in DOM tree. If this flag is off, they are not put in the tree, but are still parsed and checked for correctness. This flag is off by default.

  • parse_cdata determines if CDATA sections (nodes with type node_cdata) are to be put in DOM tree. If this flag is off, they are not put in the tree, but are still parsed and checked for correctness. This flag is on by default.

  • parse_trim_pcdata determines if leading and trailing whitespace characters are to be removed from PCDATA nodes. While for some applications leading/trailing whitespace is significant, often the application only cares about the non-whitespace contents so it’s easier to trim whitespace from text during parsing. This flag is off by default.

  • parse_ws_pcdata determines if PCDATA nodes (nodes with type node_pcdata) that consist only of whitespace characters are to be put in DOM tree. Often whitespace-only data is not significant for the application, and the cost of allocating and storing such nodes (both memory and speed-wise) can be significant. For example, after parsing XML string <node> <a/> </node>, <node> element will have three children when parse_ws_pcdata is set (child with type node_pcdata and value " ", child with type node_element and name "a", and another child with type node_pcdata and value " "), and only one child when parse_ws_pcdata is not set. This flag is off by default.

  • parse_ws_pcdata_single determines if whitespace-only PCDATA nodes that have no sibling nodes are to be put in DOM tree. In some cases application needs to parse the whitespace-only contents of nodes, i.e. <node> </node>, but is not interested in whitespace markup elsewhere. It is possible to use parse_ws_pcdata flag in this case, but it results in excessive allocations and complicates document processing; this flag can be used to avoid that. As an example, after parsing XML string <node> <a> </a> </node> with parse_ws_pcdata_single flag set, <node> element will have one child <a>, and <a> element will have one child with type node_pcdata and value " ". This flag has no effect if parse_ws_pcdata is enabled. This flag is off by default.

  • parse_embed_pcdata determines if PCDATA contents is to be saved as element values. Normally element nodes have names but not values; this flag forces the parser to store the contents as a value if PCDATA is the first child of the element node (otherwise PCDATA node is created as usual). This can significantly reduce the memory required for documents with many PCDATA nodes. To retrieve the data you can use xml_node::value() on the element nodes or any of the higher-level functions like child_value or text. This flag is off by default. Since this flag significantly changes the DOM structure it is only recommended for parsing documents with many PCDATA nodes in memory-constrained environments. This flag is off by default.

  • parse_merge_pcdata determines if PCDATA contents is to be merged with the previous PCDATA node when no intermediary nodes are present between them. If the PCDATA contains CDATA sections, PI nodes, or comments in between, and either of the flags parse_cdata ,parse_pi ,parse_comments is not set, the contents of the PCDATA node will be merged with the previous one. This flag is off by default.

  • parse_fragment determines if document should be treated as a fragment of a valid XML. Parsing document as a fragment leads to top-level PCDATA content (i.e. text that is not located inside a node) to be added to a tree, and additionally treats documents without element nodes as valid and permits multiple top-level element nodes (currently multiple top-level element nodes are also permitted when the flag is off, but that behavior should not be relied on). This flag is off by default.

Caution
Using in-place parsing (load_buffer_inplace) with parse_fragment flag may result in the loss of the last character of the buffer if it is a part of PCDATA. Since PCDATA values are null-terminated strings, the only way to resolve this is to provide a null-terminated buffer as an input to load_buffer_inplace - i.e. doc.load_buffer_inplace("test\0", 5, pugi::parse_default | pugi::parse_fragment).

These flags control the transformation of tree element contents:

  • parse_escapes determines if character and entity references are to be expanded during the parsing process. Character references have the form &#…​; or &#x…​; (…​ is Unicode numeric representation of character in either decimal (&#…​;) or hexadecimal (&#x…​;) form), entity references are &lt;, &gt;, &amp;, &apos; and &quot; (note that as pugixml does not handle DTD, the only allowed entities are predefined ones). If character/entity reference can not be expanded, it is left as is, so you can do additional processing later. Reference expansion is performed on attribute values and PCDATA content. This flag is on by default.

  • parse_eol determines if EOL handling (that is, replacing sequences \r\n by a single \n character, and replacing all standalone \r characters by \n) is to be performed on input data (that is, comment contents, PCDATA/CDATA contents and attribute values). This flag is on by default.

  • parse_wconv_attribute determines if attribute value normalization should be performed for all attributes. This means, that whitespace characters (new line, tab and space) are replaced with space (' '). New line characters are always treated as if parse_eol is set, i.e. \r\n is converted to a single space. This flag is on by default.

  • parse_wnorm_attribute determines if extended attribute value normalization should be performed for all attributes. This means, that after attribute values are normalized as if parse_wconv_attribute was set, leading and trailing space characters are removed, and all sequences of space characters are replaced by a single space character. parse_wconv_attribute has no effect if this flag is on. This flag is off by default.

Note
parse_wconv_attribute option performs transformations that are required by W3C specification for attributes that are declared as CDATA; parse_wnorm_attribute performs transformations required for NMTOKENS attributes. In the absence of document type declaration all attributes should behave as if they are declared as CDATA, thus parse_wconv_attribute is the default option.

Additionally there are three predefined option masks:

  • parse_minimal has all options turned off. This option mask means that pugixml does not add declaration nodes, document type declaration nodes, PI nodes, CDATA sections and comments to the resulting tree and does not perform any conversion for input data, so theoretically it is the fastest mode. However, as mentioned above, in practice parse_default is usually equally fast.

  • parse_default is the default set of flags, i.e. it has all options set to their default values. It includes parsing CDATA sections (comments/PIs are not parsed), performing character and entity reference expansion, replacing whitespace characters with spaces in attribute values and performing EOL handling. Note, that PCDATA sections consisting only of whitespace characters are not parsed (by default) for performance reasons.

  • parse_full is the set of flags which adds nodes of all types to the resulting tree and performs default conversions for input data. It includes parsing CDATA sections, comments, PI nodes, document declaration node and document type declaration node, performing character and entity reference expansion, replacing whitespace characters with spaces in attribute values and performing EOL handling. Note, that PCDATA sections consisting only of whitespace characters are not parsed in this mode.

This is an example of using different parsing options (samples/load_options.cpp):

const char* source = "<!--comment--><node>&lt;</node>";

// Parsing with default options; note that comment node is not added to the tree, and entity reference &lt; is expanded
doc.load_string(source);
std::cout << "First node value: [" << doc.first_child().value() << "], node child value: [" << doc.child_value("node") << "]\n";

// Parsing with additional parse_comments option; comment node is now added to the tree
doc.load_string(source, pugi::parse_default | pugi::parse_comments);
std::cout << "First node value: [" << doc.first_child().value() << "], node child value: [" << doc.child_value("node") << "]\n";

// Parsing with additional parse_comments option and without the (default) parse_escapes option; &lt; is not expanded
doc.load_string(source, (pugi::parse_default | pugi::parse_comments) & ~pugi::parse_escapes);
std::cout << "First node value: [" << doc.first_child().value() << "], node child value: [" << doc.child_value("node") << "]\n";

// Parsing with minimal option mask; comment node is not added to the tree, and &lt; is not expanded
doc.load_string(source, pugi::parse_minimal);
std::cout << "First node value: [" << doc.first_child().value() << "], node child value: [" << doc.child_value("node") << "]\n";

4.6. Encodings

pugixml supports all popular Unicode encodings (UTF-8, UTF-16 (big and little endian), UTF-32 (big and little endian); UCS-2 is naturally supported since it’s a strict subset of UTF-16) as well as some non-Unicode encodings (Latin-1) and handles all encoding conversions. Most loading functions accept the optional parameter encoding. This is a value of enumeration type xml_encoding, that can have the following values:

  • encoding_auto means that pugixml will try to guess the encoding based on source XML data. The algorithm is a modified version of the one presented in Appendix F of XML recommendation. It tries to find a Byte Order Mark of one of the supported encodings first; if that fails, it checks if the first few bytes of the input data look like a representation of < or <? in one of UTF-16 or UTF-32 variants; if that fails as well, encoding is assumed to be either UTF-8 or one of the non-Unicode encodings - to make the final decision the algorithm tries to parse the encoding attribute of the XML document declaration, ultimately falling back to UTF-8 if document declaration is not present or does not specify a supported encoding.

  • encoding_utf8 corresponds to UTF-8 encoding as defined in the Unicode standard; UTF-8 sequences with length equal to 5 or 6 are not standard and are rejected.

  • encoding_utf16_le corresponds to little-endian UTF-16 encoding as defined in the Unicode standard; surrogate pairs are supported.

  • encoding_utf16_be corresponds to big-endian UTF-16 encoding as defined in the Unicode standard; surrogate pairs are supported.

  • encoding_utf16 corresponds to UTF-16 encoding as defined in the Unicode standard; the endianness is assumed to be that of the target platform.

  • encoding_utf32_le corresponds to little-endian UTF-32 encoding as defined in the Unicode standard.

  • encoding_utf32_be corresponds to big-endian UTF-32 encoding as defined in the Unicode standard.

  • encoding_utf32 corresponds to UTF-32 encoding as defined in the Unicode standard; the endianness is assumed to be that of the target platform.

  • encoding_wchar corresponds to the encoding of wchar_t type; it has the same meaning as either encoding_utf16 or encoding_utf32, depending on wchar_t size.

  • encoding_latin1 corresponds to ISO-8859-1 encoding (also known as Latin-1).

The algorithm used for encoding_auto correctly detects any supported Unicode encoding for all well-formed XML documents (since they start with document declaration) and for all other XML documents that start with <; if your XML document does not start with < and has encoding that is different from UTF-8, use the specific encoding.

Note
The current behavior for Unicode conversion is to skip all invalid UTF sequences during conversion. This behavior should not be relied upon; moreover, in case no encoding conversion is performed, the invalid sequences are not removed, so you’ll get them as is in node/attribute contents.

4.7. Conformance to W3C specification

pugixml is not fully W3C conformant - it can load any valid XML document, but does not perform some well-formedness checks. While considerable effort is made to reject invalid XML documents, some validation is not performed because of performance reasons.

There is only one non-conformant behavior when dealing with valid XML documents: pugixml does not use information supplied in document type declaration for parsing. This means that entities declared in DOCTYPE are not expanded, and all attribute/PCDATA values are always processed in a uniform way that depends only on parsing options.

As for rejecting invalid XML documents, there are a number of incompatibilities with W3C specification, including:

  • Multiple attributes of the same node can have equal names.

  • Tag and attribute names are not fully validated for consisting of allowed characters, so some invalid tags are not rejected

  • Attribute values which contain < are not rejected.

  • Invalid entity/character references are not rejected and are instead left as is.

  • Comment values can contain --.

  • XML data is not required to begin with document declaration; additionally, document declaration can appear after comments and other nodes.

  • Invalid document type declarations are silently ignored in some cases.

  • Unicode validation is not performed so invalid UTF sequences are not rejected.

  • Document can contain multiple top-level element nodes.

5. Accessing document data

pugixml features an extensive interface for getting various types of data from the document and for traversing the document. This section provides documentation for all such functions that do not modify the tree except for XPath-related functions; see XPath for XPath reference. As discussed in C++ interface, there are two types of handles to tree data - xml_node and xml_attribute. The handles have special null (empty) values which propagate through various functions and thus are useful for writing more concise code; see this description for details. The documentation in this section will explicitly state the results of all function in case of null inputs.

Basic traversal functions

The internal representation of the document is a tree, where each node has a list of child nodes (the order of children corresponds to their order in the XML representation), and additionally element nodes have a list of attributes, which is also ordered. Several functions are provided in order to let you get from one node in the tree to the other. These functions roughly correspond to the internal representation, and thus are usually building blocks for other methods of traversing (i.e. XPath traversals are based on these functions).

xml_node xml_node::parent() const;
xml_node xml_node::first_child() const;
xml_node xml_node::last_child() const;
xml_node xml_node::next_sibling() const;
xml_node xml_node::previous_sibling() const;

xml_attribute xml_node::first_attribute() const;
xml_attribute xml_node::last_attribute() const;
xml_attribute xml_attribute::next_attribute() const;
xml_attribute xml_attribute::previous_attribute() const;

parent function returns the node’s parent; all non-null nodes except the document have non-null parent. first_child and last_child return the first and last child of the node, respectively; note that only document nodes and element nodes can have non-empty child node list. If node has no children, both functions return null nodes. next_sibling and previous_sibling return the node that’s immediately to the right/left of this node in the children list, respectively - for example, in <a/><b/><c/>, calling next_sibling for a handle that points to <b/> results in a handle pointing to <c/>, and calling previous_sibling results in handle pointing to <a/>. If node does not have next/previous sibling (this happens if it is the last/first node in the list, respectively), the functions return null nodes. first_attribute, last_attribute, next_attribute and previous_attribute functions behave similarly to the corresponding child node functions and allow to iterate through attribute list in the same way.

Note
Because of memory consumption reasons, attributes do not have a link to their parent nodes. Thus there is no xml_attribute::parent() function.

Calling any of the functions above on the null handle results in a null handle - i.e. node.first_child().next_sibling() returns the second child of node, and null handle if node is null, has no children at all or if it has only one child node.

With these functions, you can iterate through all child nodes and display all attributes like this (samples/traverse_base.cpp):

for (pugi::xml_node tool = tools.first_child(); tool; tool = tool.next_sibling())
{
    std::cout << "Tool:";

    for (pugi::xml_attribute attr = tool.first_attribute(); attr; attr = attr.next_attribute())
    {
        std::cout << " " << attr.name() << "=" << attr.value();
    }

    std::cout << std::endl;
}

5.1. Getting node data

Apart from structural information (parent, child nodes, attributes), nodes can have name and value, both of which are strings. Depending on node type, name or value may be absent. node_document nodes do not have a name or value, node_element and node_declaration nodes always have a name but never have a value, node_pcdata, node_cdata, node_comment and node_doctype nodes never have a name but always have a value (it may be empty though), node_pi nodes always have a name and a value (again, value may be empty). In order to get node’s name or value, you can use the following functions:

const char_t* xml_node::name() const;
const char_t* xml_node::value() const;

In case node does not have a name or value or if the node handle is null, both functions return empty strings - they never return null pointers.

It is common to store data as text contents of some node - i.e. <node><description>This is a node</description></node>. In this case, <description> node does not have a value, but instead has a child of type node_pcdata with value "This is a node". pugixml provides several helper functions to parse such data:

const char_t* xml_node::child_value() const;
const char_t* xml_node::child_value(const char_t* name) const;
xml_text xml_node::text() const;

child_value() returns the value of the first child with type node_pcdata or node_cdata; child_value(name) is a simple wrapper for child(name).child_value(). For the above example, calling node.child_value("description") and description.child_value() will both produce string "This is a node". If there is no child with relevant type, or if the handle is null, child_value functions return empty string.

text() returns a special object that can be used for working with PCDATA contents in more complex cases than just retrieving the value; it is described in Working with text contents sections.

There is an example of using some of these functions at the end of the next section.

5.2. Getting attribute data

All attributes have name and value, both of which are strings (value may be empty). There are two corresponding accessors, like for xml_node:

const char_t* xml_attribute::name() const;
const char_t* xml_attribute::value() const;

In case the attribute handle is null, both functions return empty strings - they never return null pointers.

If you need a non-empty string if the attribute handle is null (for example, you need to get the option value from XML attribute, but if it is not specified, you need it to default to "sorted" instead of ""), you can use as_string accessor:

const char_t* xml_attribute::as_string(const char_t* def = "") const;

It returns def argument if the attribute handle is null. If you do not specify the argument, the function is equivalent to value().

In many cases attribute values have types that are not strings - i.e. an attribute may always contain values that should be treated as integers, despite the fact that they are represented as strings in XML. pugixml provides several accessors that convert attribute value to some other type:

int xml_attribute::as_int(int def = 0) const;
unsigned int xml_attribute::as_uint(unsigned int def = 0) const;
double xml_attribute::as_double(double def = 0) const;
float xml_attribute::as_float(float def = 0) const;
bool xml_attribute::as_bool(bool def = false) const;
long long xml_attribute::as_llong(long long def = 0) const;
unsigned long long xml_attribute::as_ullong(unsigned long long def = 0) const;

as_int, as_uint, as_llong, as_ullong, as_double and as_float convert attribute values to numbers. If attribute handle is null def argument is returned (which is 0 by default). Otherwise, all leading whitespace characters are truncated, and the remaining string is parsed as an integer number in either decimal or hexadecimal form (applicable to as_int, as_uint, as_llong and as_ullong; hexadecimal format is used if the number has 0x or 0X prefix) or as a floating point number in either decimal or scientific form (as_double or as_float).

In case the input string contains a non-numeric character sequence or a number that is out of the target numeric range, the result is undefined.

Caution
Number conversion functions depend on current C locale as set with setlocale, so may return unexpected results if the locale is different from "C".

as_bool converts attribute value to boolean as follows: if attribute handle is null, def argument is returned (which is false by default). If attribute value is empty, false is returned. Otherwise, true is returned if the first character is one of '1', 't', 'T', 'y', 'Y'. This means that strings like "true" and "yes" are recognized as true, while strings like "false" and "no" are recognized as false. For more complex matching you’ll have to write your own function.

Note
as_llong and as_ullong are only available if your platform has reliable support for the long long type, including string conversions.

This is an example of using these functions, along with node data retrieval ones (samples/traverse_base.cpp):

for (pugi::xml_node tool = tools.child("Tool"); tool; tool = tool.next_sibling("Tool"))
{
    std::cout << "Tool " << tool.attribute("Filename").value();
    std::cout << ": AllowRemote " << tool.attribute("AllowRemote").as_bool();
    std::cout << ", Timeout " << tool.attribute("Timeout").as_int();
    std::cout << ", Description '" << tool.child_value("Description") << "'\n";
}

5.3. Contents-based traversal functions

Since a lot of document traversal consists of finding the node/attribute with the correct name, there are special functions for that purpose:

xml_node xml_node::child(const char_t* name) const;
xml_attribute xml_node::attribute(const char_t* name) const;
xml_node xml_node::next_sibling(const char_t* name) const;
xml_node xml_node::previous_sibling(const char_t* name) const;

child and attribute return the first child/attribute with the specified name; next_sibling and previous_sibling return the first sibling in the corresponding direction with the specified name. All string comparisons are case-sensitive. In case the node handle is null or there is no node/attribute with the specified name, null handle is returned.

child and next_sibling functions can be used together to loop through all child nodes with the desired name like this:

for (pugi::xml_node tool = tools.child("Tool"); tool; tool = tool.next_sibling("Tool"))

attribute function needs to look for the target attribute by name. If a node has many attributes, finding each by name can be time consuming. If you have an idea of how attributes are ordered in the node, you can use a faster function:

xml_attribute xml_node::attribute(const char_t* name, xml_attribute& hint) const;

The extra hint argument is used to guess where the attribute might be, and is updated to the location of the next attribute so that if you search for multiple attributes in the right order, the performance is maximized. Note that hint has to be either null or has to belong to the node, otherwise the behavior is undefined.

You can use this function as follows:

xml_attribute hint;
xml_attribute id = node.attribute("id", hint);
xml_attribute name = node.attribute("name", hint);
xml_attribute version = node.attribute("version", hint);

This code is correct regardless of the order of the attributes, but it’s faster if "id", "name" and "version" occur in that order.

Occasionally the needed node is specified not by the unique name but instead by the value of some attribute; for example, it is common to have node collections with each node having a unique id: <group><item id="1"/> <item id="2"/></group>. There are two functions for finding child nodes based on the attribute values:

xml_node xml_node::find_child_by_attribute(const char_t* name, const char_t* attr_name, const char_t* attr_value) const;
xml_node xml_node::find_child_by_attribute(const char_t* attr_name, const char_t* attr_value) const;

The three-argument function returns the first child node with the specified name which has an attribute with the specified name/value; the two-argument function skips the name test for the node, which can be useful for searching in heterogeneous collections. If the node handle is null or if no node is found, null handle is returned. All string comparisons are case-sensitive.

In all of the above functions, all arguments have to be valid strings; passing null pointers results in undefined behavior.

This is an example of using these functions (samples/traverse_base.cpp):

std::cout << "Tool for *.dae generation: " << tools.find_child_by_attribute("Tool", "OutputFileMasks", "*.dae").attribute("Filename").value() << "\n";

for (pugi::xml_node tool = tools.child("Tool"); tool; tool = tool.next_sibling("Tool"))
{
    std::cout << "Tool " << tool.attribute("Filename").value() << "\n";
}

5.4. Range-based for-loop support

If your C++ compiler supports range-based for-loop (this is a C++11 feature, at the time of writing it’s supported by Microsoft Visual Studio 2012+, GCC 4.6+ and Clang 3.0+), you can use it to enumerate nodes/attributes. Additional helpers are provided to support this; note that they are also compatible with Boost Foreach, and possibly other pre-C++11 foreach facilities.

implementation-defined-type xml_node::children() const;
implementation-defined-type xml_node::children(const char_t* name) const;
implementation-defined-type xml_node::attributes() const;

children function allows you to enumerate all child nodes; children function with name argument allows you to enumerate all child nodes with a specific name; attributes function allows you to enumerate all attributes of the node. Note that you can also use node object itself in a range-based for construct, which is equivalent to using children().

This is an example of using these functions (samples/traverse_rangefor.cpp):

for (pugi::xml_node tool: tools.children("Tool"))
{
    std::cout << "Tool:";

    for (pugi::xml_attribute attr: tool.attributes())
    {
        std::cout << " " << attr.name() << "=" << attr.value();
    }

    for (pugi::xml_node child: tool.children())
    {
        std::cout << ", child " << child.name();
    }

    std::cout << std::endl;
}

While using children() makes the intent of the code clear, note that each node can be treated as a container of child nodes, since it provides begin()/end() member functions described in the next section. Because of this, you can iterate through node’s children simply by using the node itself:

for (pugi::xml_node child: tool)

5.5. Traversing node/attribute lists via iterators

Child node lists and attribute lists are simply double-linked lists; while you can use previous_sibling/next_sibling and other such functions for iteration, pugixml additionally provides node and attribute iterators, so that you can treat nodes as containers of other nodes or attributes:

class xml_node_iterator;
class xml_attribute_iterator;

typedef xml_node_iterator xml_node::iterator;
iterator xml_node::begin() const;
iterator xml_node::end() const;

typedef xml_attribute_iterator xml_node::attribute_iterator;
attribute_iterator xml_node::attributes_begin() const;
attribute_iterator xml_node::attributes_end() const;

begin and attributes_begin return iterators that point to the first node/attribute, respectively; end and attributes_end return past-the-end iterator for node/attribute list, respectively - this iterator can’t be dereferenced, but decrementing it results in an iterator pointing to the last element in the list (except for empty lists, where decrementing past-the-end iterator results in undefined behavior). Past-the-end iterator is commonly used as a termination value for iteration loops (see sample below). If you want to get an iterator that points to an existing handle, you can construct the iterator with the handle as a single constructor argument, like so: xml_node_iterator(node). For xml_attribute_iterator, you’ll have to provide both an attribute and its parent node.

begin and end return equal iterators if called on null node; such iterators can’t be dereferenced. attributes_begin and attributes_end behave the same way. For correct iterator usage this means that child node/attribute collections of null nodes appear to be empty.

Both types of iterators have bidirectional iterator semantics (i.e. they can be incremented and decremented, but efficient random access is not supported) and support all usual iterator operations - comparison, dereference, etc. The iterators are invalidated if the node/attribute objects they’re pointing to are removed from the tree; adding nodes/attributes does not invalidate any iterators.

Here is an example of using iterators for document traversal (samples/traverse_iter.cpp):

for (pugi::xml_node_iterator it = tools.begin(); it != tools.end(); ++it)
{
    std::cout << "Tool:";

    for (pugi::xml_attribute_iterator ait = it->attributes_begin(); ait != it->attributes_end(); ++ait)
    {
        std::cout << " " << ait->name() << "=" << ait->value();
    }

    std::cout << std::endl;
}
Caution
Node and attribute iterators are somewhere in the middle between const and non-const iterators. While dereference operation yields a non-constant reference to the object, so that you can use it for tree modification operations, modifying this reference using assignment - i.e. passing iterators to a function like std::sort - will not give expected results, as assignment modifies local handle that’s stored in the iterator.

5.6. Recursive traversal with xml_tree_walker

The methods described above allow traversal of immediate children of some node; if you want to do a deep tree traversal, you’ll have to do it via a recursive function or some equivalent method. However, pugixml provides a helper for depth-first traversal of a subtree. In order to use it, you have to implement xml_tree_walker interface and to call traverse function:

class xml_tree_walker
{
public:
    virtual bool begin(xml_node& node);
    virtual bool for_each(xml_node& node) = 0;
    virtual bool end(xml_node& node);

    int depth() const;
};

bool xml_node::traverse(xml_tree_walker& walker);

The traversal is launched by calling traverse function on traversal root and proceeds as follows:

  • First, begin function is called with traversal root as its argument.

  • Then, for_each function is called for all nodes in the traversal subtree in depth first order, excluding the traversal root. Node is passed as an argument.

  • Finally, end function is called with traversal root as its argument.

If begin, end or any of the for_each calls return false, the traversal is terminated and false is returned as the traversal result; otherwise, the traversal results in true. Note that you don’t have to override begin or end functions; their default implementations return true.

You can get the node’s depth relative to the traversal root at any point by calling depth function. It returns -1 if called from begin/end, and returns 0-based depth if called from for_each - depth is 0 for all children of the traversal root, 1 for all grandchildren and so on.

This is an example of traversing tree hierarchy with xml_tree_walker (samples/traverse_walker.cpp):

struct simple_walker: pugi::xml_tree_walker
{
    virtual bool for_each(pugi::xml_node& node)
    {
        for (int i = 0; i < depth(); ++i) std::cout << "  "; // indentation

        std::cout << node_types[node.type()] << ": name='" << node.name() << "', value='" << node.value() << "'\n";

        return true; // continue traversal
    }
};
simple_walker walker;
doc.traverse(walker);

5.7. Searching for nodes/attributes with predicates

While there are existing functions for getting a node/attribute with known contents, they are often not sufficient for simple queries. As an alternative for manual iteration through nodes/attributes until the needed one is found, you can make a predicate and call one of find_ functions:

template <typename Predicate> xml_attribute xml_node::find_attribute(Predicate pred) const;
template <typename Predicate> xml_node xml_node::find_child(Predicate pred) const;
template <typename Predicate> xml_node xml_node::find_node(Predicate pred) const;

The predicate should be either a plain function or a function object which accepts one argument of type xml_attribute (for find_attribute) or xml_node (for find_child and find_node), and returns bool. The predicate is never called with null handle as an argument.

find_attribute function iterates through all attributes of the specified node, and returns the first attribute for which the predicate returned true. If the predicate returned false for all attributes or if there were no attributes (including the case where the node is null), null attribute is returned.

find_child function iterates through all child nodes of the specified node, and returns the first node for which the predicate returned true. If the predicate returned false for all nodes or if there were no child nodes (including the case where the node is null), null node is returned.

find_node function performs a depth-first traversal through the subtree of the specified node (excluding the node itself), and returns the first node for which the predicate returned true. If the predicate returned false for all nodes or if subtree was empty, null node is returned.

This is an example of using predicate-based functions (samples/traverse_predicate.cpp):

bool small_timeout(pugi::xml_node node)
{
    return node.attribute("Timeout").as_int() < 20;
}

struct allow_remote_predicate
{
    bool operator()(pugi::xml_attribute attr) const
    {
        return strcmp(attr.name(), "AllowRemote") == 0;
    }

    bool operator()(pugi::xml_node node) const
    {
        return node.attribute("AllowRemote").as_bool();
    }
};
// Find child via predicate (looks for direct children only)
std::cout << tools.find_child(allow_remote_predicate()).attribute("Filename").value() << std::endl;

// Find node via predicate (looks for all descendants in depth-first order)
std::cout << doc.find_node(allow_remote_predicate()).attribute("Filename").value() << std::endl;

// Find attribute via predicate
std::cout << tools.last_child().find_attribute(allow_remote_predicate()).value() << std::endl;

// We can use simple functions instead of function objects
std::cout << tools.find_child(small_timeout).attribute("Filename").value() << std::endl;

5.8. Working with text contents

It is common to store data as text contents of some node - i.e. <node><description>This is a node</description></node>. In this case, <description> node does not have a value, but instead has a child of type node_pcdata with value "This is a node". pugixml provides a special class, xml_text, to work with such data. Working with text objects to modify data is described in the documentation for modifying document data; this section describes the access interface of xml_text.

You can get the text object from a node by using text() method:

xml_text xml_node::text() const;

If the node has a type node_pcdata or node_cdata, then the node itself is used to return data; otherwise, a first child node of type node_pcdata or node_cdata is used.

You can check if the text object is bound to a valid PCDATA/CDATA node by using it as a boolean value, i.e. if (text) { …​ } or if (!text) { …​ }. Alternatively you can check it by using the empty() method:

bool xml_text::empty() const;

Given a text object, you can get the contents (i.e. the value of PCDATA/CDATA node) by using the following function:

const char_t* xml_text::get() const;

In case text object is empty, the function returns an empty string - it never returns a null pointer.

If you need a non-empty string if the text object is empty, or if the text contents is actually a number or a boolean that is stored as a string, you can use the following accessors:

const char_t* xml_text::as_string(const char_t* def = "") const;
int xml_text::as_int(int def = 0) const;
unsigned int xml_text::as_uint(unsigned int def = 0) const;
double xml_text::as_double(double def = 0) const;
float xml_text::as_float(float def = 0) const;
bool xml_text::as_bool(bool def = false) const;
long long xml_text::as_llong(long long def = 0) const;
unsigned long long xml_text::as_ullong(unsigned long long def = 0) const;

All of the above functions have the same semantics as similar xml_attribute members: they return the default argument if the text object is empty, they convert the text contents to a target type using the same rules and restrictions. You can refer to documentation for the attribute functions for details.

xml_text is essentially a helper class that operates on xml_node values. It is bound to a node of type node_pcdata or node_cdata. You can use the following function to retrieve this node:

xml_node xml_text::data() const;

Essentially, assuming text is an xml_text object, calling text.get() is equivalent to calling text.data().value().

This is an example of using xml_text object (samples/text.cpp):

std::cout << "Project name: " << project.child("name").text().get() << std::endl;
std::cout << "Project version: " << project.child("version").text().as_double() << std::endl;
std::cout << "Project visibility: " << (project.child("public").text().as_bool(/* def= */ true) ? "public" : "private") << std::endl;
std::cout << "Project description: " << project.child("description").text().get() << std::endl;

5.9. Miscellaneous functions

If you need to get the document root of some node, you can use the following function:

xml_node xml_node::root() const;

This function returns the node with type node_document, which is the root node of the document the node belongs to (unless the node is null, in which case null node is returned).

While pugixml supports complex XPath expressions, sometimes a simple path handling facility is needed. There are two functions, for getting node path and for converting path to a node:

string_t xml_node::path(char_t delimiter = '/') const;
xml_node xml_node::first_element_by_path(const char_t* path, char_t delimiter = '/') const;

Node paths consist of node names, separated with a delimiter (which is / by default); also paths can contain self (.) and parent (..) pseudo-names, so that this is a valid path: "../../foo/./bar". path returns the path to the node from the document root, first_element_by_path looks for a node represented by a given path; a path can be an absolute one (absolute paths start with the delimiter), in which case the rest of the path is treated as document root relative, and relative to the given node. For example, in the following document: <a><b><c/></b></a>, node <c/> has path "a/b/c"; calling first_element_by_path for document with path "a/b" results in node <b/>; calling first_element_by_path for node <a/> with path "../a/./b/../." results in node <a/>; calling first_element_by_path with path "/a" results in node <a/> for any node.

In case path component is ambiguous (if there are two nodes with given name), the first one is selected; paths are not guaranteed to uniquely identify nodes in a document. If any component of a path is not found, the result of first_element_by_path is null node; also first_element_by_path returns null node for null nodes, in which case the path does not matter. path returns an empty string for null nodes.

Note
path function returns the result as STL string, and thus is not available if PUGIXML_NO_STL is defined.

pugixml does not record row/column information for nodes upon parsing for efficiency reasons. However, if the node has not changed in a significant way since parsing (the name/value are not changed, and the node itself is the original one, i.e. it was not deleted from the tree and re-added later), it is possible to get the offset from the beginning of XML buffer:

ptrdiff_t xml_node::offset_debug() const;

If the offset is not available (this happens if the node is null, was not originally parsed from a stream, or has changed in a significant way), the function returns -1. Otherwise it returns the offset to node’s data from the beginning of XML buffer in pugi::char_t units. For more information on parsing offsets, see parsing error handling documentation.

6. Modifying document data

The document in pugixml is fully mutable: you can completely change the document structure and modify the data of nodes/attributes. This section provides documentation for the relevant functions. All functions take care of memory management and structural integrity themselves, so they always result in structurally valid tree - however, it is possible to create an invalid XML tree (for example, by adding two attributes with the same name or by setting attribute/node name to empty/invalid string). Tree modification is optimized for performance and for memory consumption, so if you have enough memory you can create documents from scratch with pugixml and later save them to file/stream instead of relying on error-prone manual text writing and without too much overhead.

All member functions that change node/attribute data or structure are non-constant and thus can not be called on constant handles. However, you can easily convert constant handle to non-constant one by simple assignment: void foo(const pugi::xml_node& n) { pugi::xml_node nc = n; }, so const-correctness here mainly provides additional documentation.

Setting node data

As discussed before, nodes can have name and value, both of which are strings. Depending on node type, name or value may be absent. node_document nodes do not have a name or value, node_element and node_declaration nodes always have a name but never have a value, node_pcdata, node_cdata, node_comment and node_doctype nodes never have a name but always have a value (it may be empty though), node_pi nodes always have a name and a value (again, value may be empty). In order to set node’s name or value, you can use the following functions:

bool xml_node::set_name(const char_t* rhs);
bool xml_node::set_name(const char_t* rhs, size_t sz)
bool xml_node::set_value(const char_t* rhs);
bool xml_node::set_value(const char_t* rhs, size_t size);

Both functions try to set the name/value to the specified string, and return the operation result. The operation fails if the node can not have name or value (for instance, when trying to call set_name on a node_pcdata node), if the node handle is null, or if there is insufficient memory to handle the request. The provided string is copied into document managed memory and can be destroyed after the function returns (for example, you can safely pass stack-allocated buffers to these functions). The name/value content is not verified, so take care to use only valid XML names, or the document may become malformed.

This is an example of setting node name and value (samples/modify_base.cpp):

pugi::xml_node node = doc.child("node");

// change node name
std::cout << node.set_name("notnode");
std::cout << ", new node name: " << node.name() << std::endl;

// change comment text
std::cout << doc.last_child().set_value("useless comment");
std::cout << ", new comment text: " << doc.last_child().value() << std::endl;

// we can't change value of the element or name of the comment
std::cout << node.set_value("1") << ", " << doc.last_child().set_name("2") << std::endl;

6.1. Setting attribute data

All attributes have name and value, both of which are strings (value may be empty). You can set them with the following functions:

bool xml_attribute::set_name(const char_t* rhs);
bool xml_attribute::set_name(const char_t* rhs, size_t sz)
bool xml_attribute::set_value(const char_t* rhs);
bool xml_attribute::set_value(const char_t* rhs, size_t size);

Both functions try to set the name/value to the specified string, and return the operation result. The operation fails if the attribute handle is null, or if there is insufficient memory to handle the request. The provided string is copied into document managed memory and can be destroyed after the function returns (for example, you can safely pass stack-allocated buffers to these functions). The name/value content is not verified, so take care to use only valid XML names, or the document may become malformed.

In addition to string functions, several functions are provided for handling attributes with numbers and booleans as values:

bool xml_attribute::set_value(int rhs);
bool xml_attribute::set_value(unsigned int rhs);
bool xml_attribute::set_value(long rhs);
bool xml_attribute::set_value(unsigned long rhs);
bool xml_attribute::set_value(double rhs);
bool xml_attribute::set_value(double rhs, int precision);
bool xml_attribute::set_value(float rhs);
bool xml_attribute::set_value(float rhs, int precision);
bool xml_attribute::set_value(bool rhs);
bool xml_attribute::set_value(long long rhs);
bool xml_attribute::set_value(unsigned long long rhs);

The above functions convert the argument to string and then call the base set_value function. Integers are converted to a decimal form, floating-point numbers are converted to either decimal or scientific form, depending on the number magnitude, boolean values are converted to either "true" or "false".

Caution
Number conversion functions depend on current C locale as set with setlocale, so may generate unexpected results if the locale is different from "C".
Note
set_value overloads with long long type are only available if your platform has reliable support for the type, including string conversions.

For convenience, all set_value functions have the corresponding assignment operators:

xml_attribute& xml_attribute::operator=(const char_t* rhs);
xml_attribute& xml_attribute::operator=(int rhs);
xml_attribute& xml_attribute::operator=(unsigned int rhs);
xml_attribute& xml_attribute::operator=(long rhs);
xml_attribute& xml_attribute::operator=(unsigned long rhs);
xml_attribute& xml_attribute::operator=(double rhs);
xml_attribute& xml_attribute::operator=(float rhs);
xml_attribute& xml_attribute::operator=(bool rhs);
xml_attribute& xml_attribute::operator=(long long rhs);
xml_attribute& xml_attribute::operator=(unsigned long long rhs);

These operators simply call the right set_value function and return the attribute they’re called on; the return value of set_value is ignored, so errors are ignored.

This is an example of setting attribute name and value (samples/modify_base.cpp):

pugi::xml_attribute attr = node.attribute("id");

// change attribute name/value
std::cout << attr.set_name("key") << ", " << attr.set_value("345");
std::cout << ", new attribute: " << attr.name() << "=" << attr.value() << std::endl;

// we can use numbers or booleans
attr.set_value(1.234);
std::cout << "new attribute value: " << attr.value() << std::endl;

// we can also use assignment operators for more concise code
attr = true;
std::cout << "final attribute value: " << attr.value() << std::endl;

6.2. Adding nodes/attributes

Nodes and attributes do not exist without a document tree, so you can’t create them without adding them to some document. A node or attribute can be created at the end of node/attribute list or before/after some other node:

xml_attribute xml_node::append_attribute(const char_t* name);
xml_attribute xml_node::prepend_attribute(const char_t* name);
xml_attribute xml_node::insert_attribute_after(const char_t* name, const xml_attribute& attr);
xml_attribute xml_node::insert_attribute_before(const char_t* name, const xml_attribute& attr);

xml_node xml_node::append_child(xml_node_type type = node_element);
xml_node xml_node::prepend_child(xml_node_type type = node_element);
xml_node xml_node::insert_child_after(xml_node_type type, const xml_node& node);
xml_node xml_node::insert_child_before(xml_node_type type, const xml_node& node);

xml_node xml_node::append_child(const char_t* name);
xml_node xml_node::prepend_child(const char_t* name);
xml_node xml_node::insert_child_after(const char_t* name, const xml_node& node);
xml_node xml_node::insert_child_before(const char_t* name, const xml_node& node);

append_attribute and append_child create a new node/attribute at the end of the corresponding list of the node the method is called on; prepend_attribute and prepend_child create a new node/attribute at the beginning of the list; insert_attribute_after, insert_attribute_before, insert_child_after and insert_attribute_before add the node/attribute before or after the specified node/attribute.

Attribute functions create an attribute with the specified name; you can specify the empty name and change the name later if you want to. Node functions with the type argument create the node with the specified type; since node type can’t be changed, you have to know the desired type beforehand. Also note that not all types can be added as children; see below for clarification. Node functions with the name argument create the element node (node_element) with the specified name.

All functions return the handle to the created object on success, and null handle on failure. There are several reasons for failure:

  • Adding fails if the target node is null;

  • Only node_element nodes can contain attributes, so attribute adding fails if node is not an element;

  • Only node_document and node_element nodes can contain children, so child node adding fails if the target node is not an element or a document;

  • node_document and node_null nodes can not be inserted as children, so passing node_document or node_null value as type results in operation failure;

  • node_declaration nodes can only be added as children of the document node; attempt to insert declaration node as a child of an element node fails;

  • Adding node/attribute results in memory allocation, which may fail;

  • Insertion functions fail if the specified node or attribute is null or is not in the target node’s children/attribute list.

Even if the operation fails, the document remains in consistent state, but the requested node/attribute is not added.

Caution
attribute() and child() functions do not add attributes or nodes to the tree, so code like node.attribute("id") = 123; will not do anything if node does not have an attribute with name "id". Make sure you’re operating with existing attributes/nodes by adding them if necessary.

This is an example of adding new attributes/nodes to the document (samples/modify_add.cpp):

// add node with some name
pugi::xml_node node = doc.append_child("node");

// add description node with text child
pugi::xml_node descr = node.append_child("description");
descr.append_child(pugi::node_pcdata).set_value("Simple node");

// add param node before the description
pugi::xml_node param = node.insert_child_before("param", descr);

// add attributes to param node
param.append_attribute("name") = "version";
param.append_attribute("value") = 1.1;
param.insert_attribute_after("type", param.attribute("name")) = "float";

6.3. Removing nodes/attributes

If you do not want your document to contain some node or attribute, you can remove it with one of the following functions:

bool xml_node::remove_attribute(const xml_attribute& a);
bool xml_node::remove_attributes();
bool xml_node::remove_child(const xml_node& n);
bool xml_node::remove_children();

remove_attribute removes the attribute from the attribute list of the node, and returns the operation result. remove_child removes the child node with the entire subtree (including all descendant nodes and attributes) from the document, and returns the operation result. remove_attributes removes all the attributes of the node, and returns the operation result. remove_children removes all the child nodes of the node, and returns the operation result. Removing fails if one of the following is true:

  • The node the function is called on is null;

  • The attribute/node to be removed is null;

  • The attribute/node to be removed is not in the node’s attribute/child list.

Removing the attribute or node invalidates all handles to the same underlying object, and also invalidates all iterators pointing to the same object. Removing node also invalidates all past-the-end iterators to its attribute or child node list. Be careful to ensure that all such handles and iterators either do not exist or are not used after the attribute/node is removed.

If you want to remove the attribute or child node by its name, two additional helper functions are available:

bool xml_node::remove_attribute(const char_t* name);
bool xml_node::remove_child(const char_t* name);

These functions look for the first attribute or child with the specified name, and then remove it, returning the result. If there is no attribute or child with such name, the function returns false; if there are two nodes with the given name, only the first node is deleted. If you want to delete all nodes with the specified name, you can use code like this: while (node.remove_child("tool")) ;.

This is an example of removing attributes/nodes from the document (samples/modify_remove.cpp):

// remove description node with the whole subtree
pugi::xml_node node = doc.child("node");
node.remove_child("description");

// remove id attribute
pugi::xml_node param = node.child("param");
param.remove_attribute("value");

// we can also remove nodes/attributes by handles
pugi::xml_attribute id = param.attribute("name");
param.remove_attribute(id);

6.4. Working with text contents

pugixml provides a special class, xml_text, to work with text contents stored as a value of some node, i.e. <node><description>This is a node</description></node>. Working with text objects to retrieve data is described in the documentation for accessing document data; this section describes the modification interface of xml_text.

Once you have an xml_text object, you can set the text contents using the following function:

bool xml_text::set(const char_t* rhs);
bool xml_text::set(const char_t* rhs, size_t size);

This function tries to set the contents to the specified string, and returns the operation result. The operation fails if the text object was retrieved from a node that can not have a value and is not an element node (i.e. it is a node_declaration node), if the text object is empty, or if there is insufficient memory to handle the request. The provided string is copied into document managed memory and can be destroyed after the function returns (for example, you can safely pass stack-allocated buffers to this function). Note that if the text object was retrieved from an element node, this function creates the PCDATA child node if necessary (i.e. if the element node does not have a PCDATA/CDATA child already).

In addition to a string function, several functions are provided for handling text with numbers and booleans as contents:

bool xml_text::set(int rhs);
bool xml_text::set(unsigned int rhs);
bool xml_text::set(long rhs);
bool xml_text::set(unsigned long rhs);
bool xml_text::set(double rhs);
bool xml_text::set(double rhs, int precision);
bool xml_text::set(float rhs);
bool xml_text::set(float rhs, int precision);
bool xml_text::set(bool rhs);
bool xml_text::set(long long rhs);
bool xml_text::set(unsigned long long rhs);

The above functions convert the argument to string and then call the base set function. These functions have the same semantics as similar xml_attribute functions. You can refer to documentation for the attribute functions for details.

For convenience, all set functions have the corresponding assignment operators:

xml_text& xml_text::operator=(const char_t* rhs);
xml_text& xml_text::operator=(int rhs);
xml_text& xml_text::operator=(unsigned int rhs);
xml_text& xml_text::operator=(long rhs);
xml_text& xml_text::operator=(unsigned long rhs);
xml_text& xml_text::operator=(double rhs);
xml_text& xml_text::operator=(float rhs);
xml_text& xml_text::operator=(bool rhs);
xml_text& xml_text::operator=(long long rhs);
xml_text& xml_text::operator=(unsigned long long rhs);

These operators simply call the right set function and return the attribute they’re called on; the return value of set is ignored, so errors are ignored.

This is an example of using xml_text object to modify text contents (samples/text.cpp):

// change project version
project.child("version").text() = 1.2;

// add description element and set the contents
// note that we do not have to explicitly add the node_pcdata child
project.append_child("description").text().set("a test project");

6.5. Cloning nodes/attributes

With the help of previously described functions, it is possible to create trees with any contents and structure, including cloning the existing data. However since this is an often needed operation, pugixml provides built-in node/attribute cloning facilities. Since nodes and attributes do not exist without a document tree, you can’t create a standalone copy - you have to immediately insert it somewhere in the tree. For this, you can use one of the following functions:

xml_attribute xml_node::append_copy(const xml_attribute& proto);
xml_attribute xml_node::prepend_copy(const xml_attribute& proto);
xml_attribute xml_node::insert_copy_after(const xml_attribute& proto, const xml_attribute& attr);
xml_attribute xml_node::insert_copy_before(const xml_attribute& proto, const xml_attribute& attr);

xml_node xml_node::append_copy(const xml_node& proto);
xml_node xml_node::prepend_copy(const xml_node& proto);
xml_node xml_node::insert_copy_after(const xml_node& proto, const xml_node& node);
xml_node xml_node::insert_copy_before(const xml_node& proto, const xml_node& node);

These functions mirror the structure of append_child, prepend_child, insert_child_before and related functions - they take the handle to the prototype object, which is to be cloned, insert a new attribute/node at the appropriate place, and then copy the attribute data or the whole node subtree to the new object. The functions return the handle to the resulting duplicate object, or null handle on failure.

The attribute is copied along with the name and value; the node is copied along with its type, name and value; additionally attribute list and all children are recursively cloned, resulting in the deep subtree clone. The prototype object can be a part of the same document, or a part of any other document.

The failure conditions resemble those of append_child, insert_child_before and related functions, consult their documentation for more information. There are additional caveats specific to cloning functions:

  • Cloning null handles results in operation failure;

  • Node cloning starts with insertion of the node of the same type as that of the prototype; for this reason, cloning functions can not be directly used to clone entire documents, since node_document is not a valid insertion type. The example below provides a workaround.

  • It is possible to copy a subtree as a child of some node inside this subtree, i.e. node.append_copy(node.parent().parent());. This is a valid operation, and it results in a clone of the subtree in the state before cloning started, i.e. no infinite recursion takes place.

This is an example with one possible implementation of include tags in XML (samples/include.cpp). It illustrates node cloning and usage of other document modification functions:

bool load_preprocess(pugi::xml_document& doc, const char* path);

bool preprocess(pugi::xml_node node)
{
    for (pugi::xml_node child = node.first_child(); child; )
    {
        if (child.type() == pugi::node_pi && strcmp(child.name(), "include") == 0)
        {
            pugi::xml_node include = child;

            // load new preprocessed document (note: ideally this should handle relative paths)
            const char* path = include.value();

            pugi::xml_document doc;
            if (!load_preprocess(doc, path)) return false;

            // insert the comment marker above include directive
            node.insert_child_before(pugi::node_comment, include).set_value(path);

            // copy the document above the include directive (this retains the original order!)
            for (pugi::xml_node ic = doc.first_child(); ic; ic = ic.next_sibling())
            {
                node.insert_copy_before(ic, include);
            }

            // remove the include node and move to the next child
            child = child.next_sibling();

            node.remove_child(include);
        }
        else
        {
            if (!preprocess(child)) return false;

            child = child.next_sibling();
        }
    }

    return true;
}

bool load_preprocess(pugi::xml_document& doc, const char* path)
{
    pugi::xml_parse_result result = doc.load_file(path, pugi::parse_default | pugi::parse_pi); // for <?include?>

    return result ? preprocess(doc) : false;
}

6.6. Moving nodes

Sometimes instead of cloning a node you need to move an existing node to a different position in a tree. This can be accomplished by copying the node and removing the original; however, this is expensive since it results in a lot of extra operations. For moving nodes within the same document tree, you can use of the following functions instead:

xml_node xml_node::append_move(const xml_node& moved);
xml_node xml_node::prepend_move(const xml_node& moved);
xml_node xml_node::insert_move_after(const xml_node& moved, const xml_node& node);
xml_node xml_node::insert_move_before(const xml_node& moved, const xml_node& node);

These functions mirror the structure of append_copy, prepend_copy, insert_copy_before and insert_copy_after - they take the handle to the moved object and move it to the appropriate place with all attributes and/or child nodes. The functions return the handle to the resulting object (which is the same as the moved object), or null handle on failure.

The failure conditions resemble those of append_child, insert_child_before and related functions, consult their documentation for more information. There are additional caveats specific to moving functions:

  • Moving null handles results in operation failure;

  • Moving is only possible for nodes that belong to the same document; attempting to move nodes between documents will fail.

  • insert_move_after and insert_move_before functions fail if the moved node is the same as the node argument (this operation would be a no-op otherwise).

  • It is impossible to move a subtree to a child of some node inside this subtree, i.e. node.append_move(node.parent().parent()); will fail.

6.7. Assembling document from fragments

pugixml provides several ways to assemble an XML document from other XML documents. Assuming there is a set of document fragments, represented as in-memory buffers, the implementation choices are as follows:

  • Use a temporary document to parse the data from a string, then clone the nodes to a destination node. For example:

    bool append_fragment(pugi::xml_node target, const char* buffer, size_t size)
    {
        pugi::xml_document doc;
        if (!doc.load_buffer(buffer, size)) return false;

        for (pugi::xml_node child = doc.first_child(); child; child = child.next_sibling())
            target.append_copy(child);
    }
  • Cache the parsing step - instead of keeping in-memory buffers, keep document objects that already contain the parsed fragment:

    bool append_fragment(pugi::xml_node target, const pugi::xml_document& cached_fragment)
    {
        for (pugi::xml_node child = cached_fragment.first_child(); child; child = child.next_sibling())
            target.append_copy(child);
    }
  • Use xml_node::append_buffer directly:

    xml_parse_result xml_node::append_buffer(const void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);

The first method is more convenient, but slower than the other two. The relative performance of append_copy and append_buffer depends on the buffer format - usually append_buffer is faster if the buffer is in native encoding (UTF-8 or wchar_t, depending on PUGIXML_WCHAR_MODE). At the same time it might be less efficient in terms of memory usage - the implementation makes a copy of the provided buffer, and the copy has the same lifetime as the document - the memory used by that copy will be reclaimed after the document is destroyed, but no sooner. Even deleting all nodes in the document, including the appended ones, won’t reclaim the memory.

append_buffer behaves in the same way as xml_document::load_buffer - the input buffer is a byte buffer, with size in bytes; the buffer is not modified and can be freed after the function returns.

Since append_buffer needs to append child nodes to the current node, it only works if the current node is either document or element node. Calling append_buffer on a node with any other type results in an error with status_append_invalid_root status.

7. Saving document

Often after creating a new document or loading the existing one and processing it, it is necessary to save the result back to file. Also it is occasionally useful to output the whole document or a subtree to some stream; use cases include debug printing, serialization via network or other text-oriented medium, etc. pugixml provides several functions to output any subtree of the document to a file, stream or another generic transport interface; these functions allow to customize the output format (see Output options), and also perform necessary encoding conversions (see Encodings). This section documents the relevant functionality.

Before writing to the destination the node/attribute data is properly formatted according to the node type; all special XML symbols, such as < and &, are properly escaped (unless format_no_escapes flag is set). In order to guard against forgotten node/attribute names, empty node/attribute names are printed as ":anonymous". For well-formed output, make sure all node and attribute names are set to meaningful values.

CDATA sections with values that contain "]]>" are split into several sections as follows: section with value "pre]]>post" is written as <![CDATA[pre]]]]><![CDATA[>post]]>. While this alters the structure of the document (if you load the document after saving it, there will be two CDATA sections instead of one), this is the only way to escape CDATA contents.

7.1. Saving document to a file

If you want to save the whole document to a file, you can use one of the following functions:

bool xml_document::save_file(const char* path, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;
bool xml_document::save_file(const wchar_t* path, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;

These functions accept file path as its first argument, and also three optional arguments, which specify indentation and other output options (see Output options) and output data encoding (see Encodings). The path has the target operating system format, so it can be a relative or absolute one, it should have the delimiters of the target system, it should have the exact case if the target file system is case-sensitive, etc. The functions return true on success and false if the file could not be opened or written to.

File path is passed to the system file opening function as is in case of the first function (which accepts const char* path); the second function either uses a special file opening function if it is provided by the runtime library or converts the path to UTF-8 and uses the system file opening function.

save_file opens the target file for writing, outputs the requested header (by default a document declaration is output, unless the document already has one), and then saves the document contents. Calling save_file is equivalent to creating an xml_writer_file object with FILE* handle as the only constructor argument and then calling save; see Saving document via writer interface for writer interface details.

This is a simple example of saving XML document to file (samples/save_file.cpp):

// save document to file
std::cout << "Saving result: " << doc.save_file("save_file_output.xml") << std::endl;

7.2. Saving document to C++ IOstreams

To enhance interoperability pugixml provides functions for saving document to any object which implements C++ std::ostream interface. This allows you to save documents to any standard C++ stream (i.e. file stream) or any third-party compliant implementation (i.e. Boost Iostreams). Most notably, this allows for easy debug output, since you can use std::cout stream as saving target. There are two functions, one works with narrow character streams, another handles wide character ones:

void xml_document::save(std::ostream& stream, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;
void xml_document::save(std::wostream& stream, const char_t* indent = "\t", unsigned int flags = format_default) const;

save with std::ostream argument saves the document to the stream in the same way as save_file (i.e. with requested header and with encoding conversions). On the other hand, save with std::wstream argument saves the document to the wide stream with encoding_wchar encoding. Because of this, using save with wide character streams requires careful (usually platform-specific) stream setup (i.e. using the imbue function). Generally use of wide streams is discouraged, however it provides you with the ability to save documents to non-Unicode encodings, i.e. you can save Shift-JIS encoded data if you set the correct locale.

Calling save with stream target is equivalent to creating an xml_writer_stream object with stream as the only constructor argument and then calling save; see Saving document via writer interface for writer interface details.

This is a simple example of saving XML document to standard output (samples/save_stream.cpp):

// save document to standard output
std::cout << "Document:\n";
doc.save(std::cout);

7.3. Saving document via writer interface

All of the above saving functions are implemented in terms of writer interface. This is a simple interface with a single function, which is called several times during output process with chunks of document data as input:

class xml_writer
{
public:
    virtual void write(const void* data, size_t size) = 0;
};

void xml_document::save(xml_writer& writer, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;

In order to output the document via some custom transport, for example sockets, you should create an object which implements xml_writer interface and pass it to save function. xml_writer::write function is called with a buffer as an input, where data points to buffer start, and size is equal to the buffer size in bytes. write implementation must write the buffer to the transport; it can not save the passed buffer pointer, as the buffer contents will change after write returns. The buffer contains the chunk of document data in the desired encoding.

write function is called with relatively large blocks (size is usually several kilobytes, except for the last block that may be small), so there is often no need for additional buffering in the implementation.

This is a simple example of custom writer for saving document data to STL string (samples/save_custom_writer.cpp); read the sample code for more complex examples:

struct xml_string_writer: pugi::xml_writer
{
    std::string result;

    virtual void write(const void* data, size_t size)
    {
        result.append(static_cast<const char*>(data), size);
    }
};

7.4. Saving a single subtree

While the previously described functions save the whole document to the destination, it is easy to save a single subtree. The following functions are provided:

void xml_node::print(std::ostream& os, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto, unsigned int depth = 0) const;
void xml_node::print(std::wostream& os, const char_t* indent = "\t", unsigned int flags = format_default, unsigned int depth = 0) const;
void xml_node::print(xml_writer& writer, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto, unsigned int depth = 0) const;

These functions have the same arguments with the same meaning as the corresponding xml_document::save functions, and allow you to save the subtree to either a C++ IOstream or to any object that implements xml_writer interface.

Saving a subtree differs from saving the whole document: the process behaves as if format_write_bom is off, and format_no_declaration is on, even if actual values of the flags are different. This means that BOM is not written to the destination, and document declaration is only written if it is the node itself or is one of node’s children. Note that this also holds if you’re saving a document; this example (samples/save_subtree.cpp) illustrates the difference:

// get a test document
pugi::xml_document doc;
doc.load_string("<foo bar='baz'><call>hey</call></foo>");

// print document to standard output (prints <?xml version="1.0"?><foo bar="baz"><call>hey</call></foo>)
doc.save(std::cout, "", pugi::format_raw);
std::cout << std::endl;

// print document to standard output as a regular node (prints <foo bar="baz"><call>hey</call></foo>)
doc.print(std::cout, "", pugi::format_raw);
std::cout << std::endl;

// print a subtree to standard output (prints <call>hey</call>)
doc.child("foo").child("call").print(std::cout, "", pugi::format_raw);
std::cout << std::endl;

7.5. Output options

All saving functions accept the optional parameter flags. This is a bitmask that customizes the output format; you can select the way the document nodes are printed and select the needed additional information that is output before the document contents.

Note
You should use the usual bitwise arithmetics to manipulate the bitmask: to enable a flag, use mask | flag; to disable a flag, use mask & ~flag.

These flags control the resulting tree contents:

  • format_indent determines if all nodes should be indented with the indentation string (this is an additional parameter for all saving functions, and is "\t" by default). If this flag is on, the indentation string is printed several times before every node, where the amount of indentation depends on the node’s depth relative to the output subtree. This flag has no effect if format_raw is enabled. This flag is on by default.

  • format_indent_attributes determines if all attributes should be printed on a new line, indented with the indentation string according to the attribute’s depth. This flag implies format_indent. This flag has no effect if format_raw is enabled. This flag is off by default.

  • format_raw switches between formatted and raw output. If this flag is on, the nodes are not indented in any way, and also no newlines that are not part of document text are printed. Raw mode can be used for serialization where the result is not intended to be read by humans; also it can be useful if the document was parsed with parse_ws_pcdata flag, to preserve the original document formatting as much as possible. This flag is off by default.

  • format_no_escapes disables output escaping for attribute values and PCDATA contents. If this flag is off, special symbols (", &, <, >) and all non-printable characters (those with codepoint values less than 32) are converted to XML escape sequences (i.e. &amp;) during output. If this flag is on, no text processing is performed; therefore, output XML can be malformed if output contents contains invalid symbols (i.e. having a stray < in the PCDATA will make the output malformed). This flag is off by default.

  • format_no_empty_element_tags determines if start/end tags should be output instead of empty element tags for empty elements (that is, elements with no children). This flag is off by default.

  • format_skip_control_chars enables skipping characters belonging to range [0; 32) instead of "&#xNN;" encoding. This flag is off by default.

  • format_attribute_single_quote enables using single quotes ' instead of double quotes " for enclosing attribute values. This flag is off by default.

These flags control the additional output information:

  • format_no_declaration disables default node declaration output. By default, if the document is saved via save or save_file function, and it does not have any document declaration, a default declaration is output before the document contents. Enabling this flag disables this declaration. This flag has no effect in xml_node::print functions: they never output the default declaration. This flag is off by default.

  • format_write_bom enables Byte Order Mark (BOM) output. By default, no BOM is output, so in case of non UTF-8 encodings the resulting document’s encoding may not be recognized by some parsers and text editors, if they do not implement sophisticated encoding detection. Enabling this flag adds an encoding-specific BOM to the output. This flag has no effect in xml_node::print functions: they never output the BOM. This flag is off by default.

  • format_save_file_text changes the file mode when using save_file function. By default, file is opened in binary mode, which means that the output file will contain platform-independent newline \n (ASCII 10). If this flag is on, file is opened in text mode, which on some systems changes the newline format (i.e. on Windows you can use this flag to output XML documents with \r\n (ASCII 13 10) newlines. This flag is off by default.

Additionally, there is one predefined option mask:

  • format_default is the default set of flags, i.e. it has all options set to their default values. It sets formatted output with indentation, without BOM and with default node declaration, if necessary.

This is an example that shows the outputs of different output options (samples/save_options.cpp):

// get a test document
pugi::xml_document doc;
doc.load_string("<foo bar='baz'><call>hey</call></foo>");

// default options; prints
// <?xml version="1.0"?>
// <foo bar="baz">
//         <call>hey</call>
// </foo>
doc.save(std::cout);
std::cout << std::endl;

// default options with custom indentation string; prints
// <?xml version="1.0"?>
// <foo bar="baz">
// --<call>hey</call>
// </foo>
doc.save(std::cout, "--");
std::cout << std::endl;

// default options without indentation; prints
// <?xml version="1.0"?>
// <foo bar="baz">
// <call>hey</call>
// </foo>
doc.save(std::cout, "\t", pugi::format_default & ~pugi::format_indent); // can also pass "" instead of indentation string for the same effect
std::cout << std::endl;

// raw output; prints
// <?xml version="1.0"?><foo bar="baz"><call>hey</call></foo>
doc.save(std::cout, "\t", pugi::format_raw);
std::cout << std::endl << std::endl;

// raw output without declaration; prints
// <foo bar="baz"><call>hey</call></foo>
doc.save(std::cout, "\t", pugi::format_raw | pugi::format_no_declaration);
std::cout << std::endl;

7.6. Encodings

pugixml supports all popular Unicode encodings (UTF-8, UTF-16 (big and little endian), UTF-32 (big and little endian); UCS-2 is naturally supported since it’s a strict subset of UTF-16) and handles all encoding conversions during output. The output encoding is set via the encoding parameter of saving functions, which is of type xml_encoding. The possible values for the encoding are documented in Encodings; the only flag that has a different meaning is encoding_auto.

While all other flags set the exact encoding, encoding_auto is meant for automatic encoding detection. The automatic detection does not make sense for output encoding, since there is usually nothing to infer the actual encoding from, so here encoding_auto means UTF-8 encoding, which is the most popular encoding for XML data storage. This is also the default value of output encoding; specify another value if you do not want UTF-8 encoded output.

Also note that wide stream saving functions do not have encoding argument and always assume encoding_wchar encoding.

Note
The current behavior for Unicode conversion is to skip all invalid UTF sequences during conversion. This behavior should not be relied upon; if your node/attribute names do not contain any valid UTF sequences, they may be output as if they are empty, which will result in malformed XML document.

7.7. Customizing document declaration

When you are saving the document using xml_document::save() or xml_document::save_file(), a default XML document declaration is output, if format_no_declaration is not specified and if the document does not have a declaration node. However, the default declaration is not customizable. If you want to customize the declaration output, you need to create the declaration node yourself.

Note
By default the declaration node is not added to the document during parsing. If you just need to preserve the original declaration node, you have to add the flag parse_declaration to the parsing flags; the resulting document will contain the original declaration node, which will be output during saving.

Declaration node is a node with type node_declaration; it behaves like an element node in that it has attributes with values (but it does not have child nodes). Therefore setting custom version, encoding or standalone declaration involves adding attributes and setting attribute values.

This is an example that shows how to create a custom declaration node (samples/save_declaration.cpp):

// get a test document
pugi::xml_document doc;
doc.load_string("<foo bar='baz'><call>hey</call></foo>");

// add a custom declaration node
pugi::xml_node decl = doc.prepend_child(pugi::node_declaration);
decl.append_attribute("version") = "1.0";
decl.append_attribute("encoding") = "UTF-8";
decl.append_attribute("standalone") = "no";

// <?xml version="1.0" encoding="UTF-8" standalone="no"?>
// <foo bar="baz">
//         <call>hey</call>
// </foo>
doc.save(std::cout);
std::cout << std::endl;

8. XPath

If the task at hand is to select a subset of document nodes that match some criteria, it is possible to code a function using the existing traversal functionality for any practical criteria. However, often either a data-driven approach is desirable, in case the criteria are not predefined and come from a file, or it is inconvenient to use traversal interfaces and a higher-level DSL is required. There is a standard language for XML processing, XPath, that can be useful for these cases. pugixml implements an almost complete subset of XPath 1.0. Because of differences in document object model and some performance implications, there are minor violations of the official specifications, which can be found in Conformance to W3C specification. The rest of this section describes the interface for XPath functionality. Please note that if you wish to learn to use XPath language, you have to look for other tutorials or manuals; for example, you can read W3Schools XPath tutorial or the XPath 1.0 specification.

8.1. XPath types

Each XPath expression can have one of the following types: boolean, number, string or node set. Boolean type corresponds to bool type, number type corresponds to double type, string type corresponds to either std::string or std::wstring, depending on whether wide character interface is enabled, and node set corresponds to xpath_node_set type. There is an enumeration, xpath_value_type, which can take the values xpath_type_boolean, xpath_type_number, xpath_type_string or xpath_type_node_set, accordingly.

Because an XPath node can be either a node or an attribute, there is a special type, xpath_node, which is a discriminated union of these types. A value of this type contains two node handles, one of xml_node type, and another one of xml_attribute type; at most one of them can be non-null. The accessors to get these handles are available:

xml_node xpath_node::node() const;
xml_attribute xpath_node::attribute() const;

XPath nodes can be null, in which case both accessors return null handles.

Note that as per XPath specification, each XPath node has a parent, which can be retrieved via this function:

xml_node xpath_node::parent() const;

parent function returns the node’s parent if the XPath node corresponds to xml_node handle (equivalent to node().parent()), or the node to which the attribute belongs to, if the XPath node corresponds to xml_attribute handle. For null nodes, parent returns null handle.

Like node and attribute handles, XPath node handles can be implicitly cast to boolean-like object to check if it is a null node, and also can be compared for equality with each other.

You can also create XPath nodes with one of the three constructors: the default constructor, the constructor that takes node argument, and the constructor that takes attribute and node arguments (in which case the attribute must belong to the attribute list of the node). The constructor from xml_node is implicit, so you can usually pass xml_node to functions that expect xpath_node. Apart from that you usually don’t need to create your own XPath node objects, since they are returned to you via selection functions.

XPath expressions operate not on single nodes, but instead on node sets. A node set is a collection of nodes, which can be optionally ordered in either a forward document order or a reverse one. Document order is defined in XPath specification; an XPath node is before another node in document order if it appears before it in XML representation of the corresponding document.

Node sets are represented by xpath_node_set object, which has an interface that resembles one of sequential random-access containers. It has an iterator type along with usual begin/past-the-end iterator accessors:

typedef const xpath_node* xpath_node_set::const_iterator;
const_iterator xpath_node_set::begin() const;
const_iterator xpath_node_set::end() const;

And it also can be iterated via indices, just like std::vector:

const xpath_node& xpath_node_set::operator[](size_t index) const;
size_t xpath_node_set::size() const;
bool xpath_node_set::empty() const;

All of the above operations have the same semantics as that of std::vector: the iterators are random-access, all of the above operations are constant time, and accessing the element at index that is greater or equal than the set size results in undefined behavior. You can use both iterator-based and index-based access for iteration, however the iterator-based one can be faster.

The order of iteration depends on the order of nodes inside the set; the order can be queried via the following function:

enum xpath_node_set::type_t {type_unsorted, type_sorted, type_sorted_reverse};
type_t xpath_node_set::type() const;

type function returns the current order of nodes; type_sorted means that the nodes are in forward document order, type_sorted_reverse means that the nodes are in reverse document order, and type_unsorted means that neither order is guaranteed (nodes can accidentally be in a sorted order even if type() returns type_unsorted). If you require a specific order of iteration, you can change it via sort function:

void xpath_node_set::sort(bool reverse = false);

Calling sort sorts the nodes in either forward or reverse document order, depending on the argument; after this call type() will return type_sorted or type_sorted_reverse.

Often the actual iteration is not needed; instead, only the first element in document order is required. For this, a special accessor is provided:

xpath_node xpath_node_set::first() const;

This function returns the first node in forward document order from the set, or null node if the set is empty. Note that while the result of the node does not depend on the order of nodes in the set (i.e. on the result of type()), the complexity does - if the set is sorted, the complexity is constant, otherwise it is linear in the number of elements or worse.

While in the majority of cases the node set is returned by XPath functions, sometimes there is a need to manually construct a node set. For such cases, a constructor is provided which takes an iterator range (const_iterator is a typedef for const xpath_node*), and an optional type:

xpath_node_set::xpath_node_set(const_iterator begin, const_iterator end, type_t type = type_unsorted);

The constructor copies the specified range and sets the specified type. The objects in the range are not checked in any way; you’ll have to ensure that the range contains no duplicates, and that the objects are sorted according to the type parameter. Otherwise XPath operations with this set may produce unexpected results.

8.2. Selecting nodes via XPath expression

If you want to select nodes that match some XPath expression, you can do it with the following functions:

xpath_node xml_node::select_node(const char_t* query, xpath_variable_set* variables = 0) const;
xpath_node_set xml_node::select_nodes(const char_t* query, xpath_variable_set* variables = 0) const;

select_nodes function compiles the expression and then executes it with the node as a context node, and returns the resulting node set. select_node returns only the first node in document order from the result, and is equivalent to calling select_nodes(query).first(). If the XPath expression does not match anything, or the node handle is null, select_nodes returns an empty set, and select_node returns null XPath node.

If exception handling is not disabled, both functions throw xpath_exception if the query can not be compiled or if it returns a value with type other than node set; see Error handling for details.

While compiling expressions is fast, the compilation time can introduce a significant overhead if the same expression is used many times on small subtrees. If you’re doing many similar queries, consider compiling them into query objects (see Using query objects for further reference). Once you get a compiled query object, you can pass it to select functions instead of an expression string:

xpath_node xml_node::select_node(const xpath_query& query) const;
xpath_node_set xml_node::select_nodes(const xpath_query& query) const;

If exception handling is not disabled, both functions throw xpath_exception if the query returns a value with type other than node set.

This is an example of selecting nodes using XPath expressions (samples/xpath_select.cpp):

pugi::xpath_node_set tools = doc.select_nodes("/Profile/Tools/Tool[@AllowRemote='true' and @DeriveCaptionFrom='lastparam']");

std::cout << "Tools:\n";

for (pugi::xpath_node_set::const_iterator it = tools.begin(); it != tools.end(); ++it)
{
    pugi::xpath_node node = *it;
    std::cout << node.node().attribute("Filename").value() << "\n";
}

pugi::xpath_node build_tool = doc.select_node("//Tool[contains(Description, 'build system')]");

if (build_tool)
    std::cout << "Build tool: " << build_tool.node().attribute("Filename").value() << "\n";

8.3. Using query objects

When you call select_nodes with an expression string as an argument, a query object is created behind the scenes. A query object represents a compiled XPath expression. Query objects can be needed in the following circumstances:

  • You can precompile expressions to query objects to save compilation time if it becomes an issue;

  • You can use query objects to evaluate XPath expressions which result in booleans, numbers or strings;

  • You can get the type of expression value via query object.

Query objects correspond to xpath_query type. They are immutable and non-copyable: they are bound to the expression at creation time and can not be cloned. If you want to put query objects in a container, either allocate them on heap via new operator and store pointers to xpath_query in the container, or use a C11 compiler (query objects are movable in C11).

You can create a query object with the constructor that takes XPath expression as an argument:

explicit xpath_query::xpath_query(const char_t* query, xpath_variable_set* variables = 0);

The expression is compiled and the compiled representation is stored in the new query object. If compilation fails, xpath_exception is thrown if exception handling is not disabled (see Error handling for details). After the query is created, you can query the type of the evaluation result using the following function:

xpath_value_type xpath_query::return_type() const;

You can evaluate the query using one of the following functions:

bool xpath_query::evaluate_boolean(const xpath_node& n) const;
double xpath_query::evaluate_number(const xpath_node& n) const;
string_t xpath_query::evaluate_string(const xpath_node& n) const;
xpath_node_set xpath_query::evaluate_node_set(const xpath_node& n) const;
xpath_node xpath_query::evaluate_node(const xpath_node& n) const;

All functions take the context node as an argument, compute the expression and return the result, converted to the requested type. According to XPath specification, value of any type can be converted to boolean, number or string value, but no type other than node set can be converted to node set. Because of this, evaluate_boolean, evaluate_number and evaluate_string always return a result, but evaluate_node_set and evaluate_node result in an error if the return type is not node set (see Error handling).

Note
Calling node.select_nodes("query") is equivalent to calling xpath_query("query").evaluate_node_set(node). Calling node.select_node("query") is equivalent to calling xpath_query("query").evaluate_node(node).

Note that evaluate_string function returns the STL string; as such, it’s not available in PUGIXML_NO_STL mode and also usually allocates memory. There is another string evaluation function:

size_t xpath_query::evaluate_string(char_t* buffer, size_t capacity, const xpath_node& n) const;

This function evaluates the string, and then writes the result to buffer (but at most capacity characters); then it returns the full size of the result in characters, including the terminating zero. If capacity is not 0, the resulting buffer is always zero-terminated. You can use this function as follows:

  • First call the function with buffer = 0 and capacity = 0; then allocate the returned amount of characters, and call the function again, passing the allocated storage and the amount of characters;

  • First call the function with small buffer and buffer capacity; then, if the result is larger than the capacity, the output has been trimmed, so allocate a larger buffer and call the function again.

This is an example of using query objects (samples/xpath_query.cpp):

// Select nodes via compiled query
pugi::xpath_query query_remote_tools("/Profile/Tools/Tool[@AllowRemote='true']");

pugi::xpath_node_set tools = query_remote_tools.evaluate_node_set(doc);
std::cout << "Remote tool: ";
tools[2].node().print(std::cout);

// Evaluate numbers via compiled query
pugi::xpath_query query_timeouts("sum(//Tool/@Timeout)");
std::cout << query_timeouts.evaluate_number(doc) << std::endl;

// Evaluate strings via compiled query for different context nodes
pugi::xpath_query query_name_valid("string-length(substring-before(@Filename, '_')) > 0 and @OutputFileMasks");
pugi::xpath_query query_name("concat(substring-before(@Filename, '_'), ' produces ', @OutputFileMasks)");

for (pugi::xml_node tool = doc.first_element_by_path("Profile/Tools/Tool"); tool; tool = tool.next_sibling())
{
    std::string s = query_name.evaluate_string(tool);

    if (query_name_valid.evaluate_boolean(tool)) std::cout << s << std::endl;
}

8.4. Using variables

XPath queries may contain references to variables; this is useful if you want to use queries that depend on some dynamic parameter without manually preparing the complete query string, or if you want to reuse the same query object for similar queries.

Variable references have the form $name; in order to use them, you have to provide a variable set, which includes all variables present in the query with correct types. This set is passed to xpath_query constructor or to select_nodes/select_node functions:

explicit xpath_query::xpath_query(const char_t* query, xpath_variable_set* variables = 0);
xpath_node xml_node::select_node(const char_t* query, xpath_variable_set* variables = 0) const;
xpath_node_set xml_node::select_nodes(const char_t* query, xpath_variable_set* variables = 0) const;

If you’re using query objects, you can change the variable values before evaluate/select calls to change the query behavior.

Note
The variable set pointer is stored in the query object; you have to ensure that the lifetime of the set exceeds that of query object.

Variable sets correspond to xpath_variable_set type, which is essentially a variable container.

You can add new variables with the following function:

xpath_variable* xpath_variable_set::add(const char_t* name, xpath_value_type type);

The function tries to add a new variable with the specified name and type; if the variable with such name does not exist in the set, the function adds a new variable and returns the variable handle; if there is already a variable with the specified name, the function returns the variable handle if variable has the specified type. Otherwise the function returns null pointer; it also returns null pointer on allocation failure.

New variables are assigned the default value which depends on the type: 0 for numbers, false for booleans, empty string for strings and empty set for node sets.

You can get the existing variables with the following functions:

xpath_variable* xpath_variable_set::get(const char_t* name);
const xpath_variable* xpath_variable_set::get(const char_t* name) const;

The functions return the variable handle, or null pointer if the variable with the specified name is not found.

Additionally, there are the helper functions for setting the variable value by name; they try to add the variable with the corresponding type, if it does not exist, and to set the value. If the variable with the same name but with different type is already present, they return false; they also return false on allocation failure. Note that these functions do not perform any type conversions.

bool xpath_variable_set::set(const char_t* name, bool value);
bool xpath_variable_set::set(const char_t* name, double value);
bool xpath_variable_set::set(const char_t* name, const char_t* value);
bool xpath_variable_set::set(const char_t* name, const xpath_node_set& value);

The variable values are copied to the internal variable storage, so you can modify or destroy them after the functions return.

If setting variables by name is not efficient enough, or if you have to inspect variable information or get variable values, you can use variable handles. A variable corresponds to the xpath_variable type, and a variable handle is simply a pointer to xpath_variable.

In order to get variable information, you can use one of the following functions:

const char_t* xpath_variable::name() const;
xpath_value_type xpath_variable::type() const;

Note that each variable has a distinct type which is specified upon variable creation and can not be changed later.

In order to get variable value, you should use one of the following functions, depending on the variable type:

bool xpath_variable::get_boolean() const;
double xpath_variable::get_number() const;
const char_t* xpath_variable::get_string() const;
const xpath_node_set& xpath_variable::get_node_set() const;

These functions return the value of the variable. Note that no type conversions are performed; if the type mismatch occurs, a dummy value is returned (false for booleans, NaN for numbers, empty string for strings and empty set for node sets).

In order to set variable value, you should use one of the following functions, depending on the variable type:

bool xpath_variable::set(bool value);
bool xpath_variable::set(double value);
bool xpath_variable::set(const char_t* value);
bool xpath_variable::set(const xpath_node_set& value);

These functions modify the variable value. Note that no type conversions are performed; if the type mismatch occurs, the functions return false; they also return false on allocation failure. The variable values are copied to the internal variable storage, so you can modify or destroy them after the functions return.

This is an example of using variables in XPath queries (samples/xpath_variables.cpp):

// Select nodes via compiled query
pugi::xpath_variable_set vars;
vars.add("remote", pugi::xpath_type_boolean);

pugi::xpath_query query_remote_tools("/Profile/Tools/Tool[@AllowRemote = string($remote)]", &vars);

vars.set("remote", true);
pugi::xpath_node_set tools_remote = query_remote_tools.evaluate_node_set(doc);

vars.set("remote", false);
pugi::xpath_node_set tools_local = query_remote_tools.evaluate_node_set(doc);

std::cout << "Remote tool: ";
tools_remote[2].node().print(std::cout);

std::cout << "Local tool: ";
tools_local[0].node().print(std::cout);

// You can pass the context directly to select_nodes/select_node
pugi::xpath_node_set tools_local_imm = doc.select_nodes("/Profile/Tools/Tool[@AllowRemote = string($remote)]", &vars);

std::cout << "Local tool imm: ";
tools_local_imm[0].node().print(std::cout);

8.5. Error handling

There are two different mechanisms for error handling in XPath implementation; the mechanism used depends on whether exception support is disabled (this is controlled with PUGIXML_NO_EXCEPTIONS define).

By default, XPath functions throw xpath_exception object in case of errors; additionally, in the event any memory allocation fails, an std::bad_alloc exception is thrown. Also xpath_exception is thrown if the query is evaluated to a node set, but the return type is not node set. If the query constructor succeeds (i.e. no exception is thrown), the query object is valid. Otherwise you can get the error details via one of the following functions:

virtual const char* xpath_exception::what() const throw();
const xpath_parse_result& xpath_exception::result() const;

If exceptions are disabled, then in the event of parsing failure the query is initialized to invalid state; you can test if the query object is valid by using it in a boolean expression: if (query) { …​ }. Additionally, you can get parsing result via the result() accessor:

const xpath_parse_result& xpath_query::result() const;

Without exceptions, evaluating invalid query results in false, empty string, NaN or an empty node set, depending on the type; evaluating a query as a node set results in an empty node set if the return type is not node set.

The information about parsing result is returned via xpath_parse_result object. It contains parsing status and the offset of last successfully parsed character from the beginning of the source stream:

struct xpath_parse_result
{
    const char* error;
    ptrdiff_t offset;

    operator bool() const;
    const char* description() const;
};

Parsing result is represented as the error message; it is either a null pointer, in case there is no error, or the error message in the form of ASCII zero-terminated string.

description() member function can be used to get the error message; it never returns the null pointer, so you can safely use description() even if query parsing succeeded. Note that description() returns a char string even in PUGIXML_WCHAR_MODE; you’ll have to call as_wide to get the wchar_t string.

In addition to the error message, parsing result has an offset member, which contains the offset of last successfully parsed character. This offset is in units of pugi::char_t (bytes for character mode, wide characters for wide character mode).

Parsing result object can be implicitly converted to bool like this: if (result) { …​ } else { …​ }.

This is an example of XPath error handling (samples/xpath_error.cpp):

// Exception is thrown for incorrect query syntax
try
{
    doc.select_nodes("//nodes[#true()]");
}
catch (const pugi::xpath_exception& e)
{
    std::cout << "Select failed: " << e.what() << std::endl;
}

// Exception is thrown for incorrect query semantics
try
{
    doc.select_nodes("(123)/next");
}
catch (const pugi::xpath_exception& e)
{
    std::cout << "Select failed: " << e.what() << std::endl;
}

// Exception is thrown for query with incorrect return type
try
{
    doc.select_nodes("123");
}
catch (const pugi::xpath_exception& e)
{
    std::cout << "Select failed: " << e.what() << std::endl;
}

8.6. Conformance to W3C specification

Because of the differences in document object models, performance considerations and implementation complexity, pugixml does not provide a fully conformant XPath 1.0 implementation. This is the current list of incompatibilities:

  • Consecutive text nodes sharing the same parent are not merged, i.e. in <node>text1 <![CDATA[data]]> text2</node> node should have one text node child, but instead has three.

  • Since the document type declaration is not used for parsing, id() function always returns an empty node set.

  • Namespace nodes are not supported (affects namespace:: axis).

  • Name tests are performed on QNames in XML document instead of expanded names; for <foo xmlns:ns1='uri' xmlns:ns2='uri'><ns1:child/><ns2:child/></foo>, query foo/ns1:* will return only the first child, not both of them. Compliant XPath implementations can return both nodes if the user provides appropriate namespace declarations.

  • String functions consider a character to be either a single char value or a single wchar_t value, depending on the library configuration; this means that some string functions are not fully Unicode-aware. This affects substring(), string-length() and translate() functions.

9. Changelog

v1.14 2023-10-01

Maintenance release. Changes:

  • Improvements:

    1. xml_attribute::set_name and xml_node::set_name now have overloads that accept pointer to non-null-terminated string and size

    2. Implement parse_merge_pcdata parsing mode in which PCDATA contents is merged into a single node when original document had comments that were skipped during parsing

    3. xml_document::load_file now returns a more consistent error status when given a path to a folder

  • Bug fixes:

    1. Fix assertion in XPath number→string conversion when using non-English locales

    2. Fix PUGIXML_STATIC_CRT CMake option to correctly select static CRT when using MSVC and recent CMake

  • Compatibility improvements:

    1. Fix GCC 2.95/3.3 builds

    2. Fix CMake 3.27 deprecation warnings

    3. Fix XCode 14 sprintf deprecation warning when compiling in C++03 mode

    4. Fix clang/gcc warnings -Wweak-vtables, -Wreserved-macro-identifier

v1.13 2022-11-01

Maintenance release. Changes:

  • Improvements:

    1. xml_attribute::set_value, xml_node::set_value and xml_text::set now have overloads that accept pointer to non-null-terminated string and size

    2. Improve performance of tree traversal when using compact mode (PUGIXML_COMPACT)

  • Bug fixes:

    1. Fix error handling in xml_document::save_file that could result in the function succeeding while running out of disk space

    2. Fix memory leak during error handling of some out-of-memory conditions during xml_document::load

  • Compatibility improvements:

    1. Fix exported symbols in CMake DLL builds when using CMake

    2. Fix exported symbols in CMake shared object builds when using -fvisibility=hidden

v1.12 2022-02-09

Maintenance release. Changes:

  • Bug fixes:

    1. Fix a bug in xml_document move construction when the source of the move is empty

    2. Fix const-correctness issues with iterator objects to support C++20 ranges

  • XPath improvements:

    1. Improved detection of overly complex queries that may result in stack overflow during parsing

  • Compatibility improvements:

    1. Fix Cygwin support for DLL builds

    2. Fix Windows CE support

    3. Add NuGet builds and project files for VS2022

  • Build system changes

    1. All CMake options now have the prefix PUGIXML_. This may require changing dependent build configurations.

    2. Many build settings are now exposed via CMake settings, most notably PUGIXML_COMPACT and PUGIXML_WCHAR_MODE can be set without changing pugiconfig.hpp

v1.11 2020-11-26

Maintenance release. Changes:

  • New features:

    1. Add xml_node::remove_attributes and xml_node::remove_children

    2. Add a way to customize floating point precision via xml_attribute::set and xml_text::set overloads

  • XPath improvements:

    1. XPath parser now limits recursion depth which prevents stack overflow on malicious queries

  • Compatibility improvements:

    1. Fix Visual Studio warnings when built using clang-cl compiler

    2. Fix Wconversion warnings in gcc

    3. Fix Wzero-as-null-pointer-constant warnings in pugixml.hpp

    4. Work around several static analysis false positives

  • Build system changes

    1. The CMake package for pugixml now provides a pugixml::pugixml target rather than a pugixml target. A compatibility pugixml target is provided if at least version 1.11 is not requested.

v1.10 2019-09-15

Maintenance release. Changes:

  • Behavior changes:

    1. Tab characters (ASCII 9) in attribute values are now encoded as '&#9;' to survive roundtripping

    2. > characters are no longer escaped in attribute values

  • New features:

    1. Add Visual Studio .natvis files to improve debugging experience

    2. CMake improvements (USE_POSTFIX and BUILD_SHARED_AND_STATIC_LIBS options for building multiple versions and pkg-config tweaks)

    3. Add format_skip_control_chars formatting flag to skip non-printable ASCII characters that are invalid to use in well-formed XML files

    4. Add format_attribute_single_quote formatting flag to use single quotes for attribute values instead of default double quotes.

  • XPath improvements:

    1. XPath union now results in a stable order that doesn’t depend on memory allocations; crucially, this may require sorting the output of XPath query operation if you rely on the document-ordered traversal

    2. Improve performance of XPath union operation, making it ~2x faster

  • Compatibility improvements:

    1. Fix Visual Studio warnings when built in a DLL configuration

    2. Fix static analysis false positives in Coverity and clang

    3. Fix Wdouble-promotion warnings in gcc

    4. Add Visual Studio 2019 support for NuGet packages

v1.9 2018-04-04

Maintenance release. Changes:

  • Specification changes:

    1. xml_document::load(const char*) (deprecated in 1.5) now has deprecated attribute; use xml_document::load_string instead

    2. xml_node::select_single_node (deprecated in 1.5) now has deprecated attribute; use xml_node::select_node instead

  • New features:

    1. Add move semantics support for xml_document and improve move semantics support for other objects

    2. CMake build now exports include directories

    3. CMake build with BUILD_SHARED_LIBS=ON now uses dllexport attribute for MSVC

  • XPath improvements:

    1. Rework parser/evaluator to not rely on exceptional control flow; longjmp is no longer used when exceptions are disabled

    2. Improve error messages for certain invalid expressions such as .[1] or (1

    3. Minor performance improvements

  • Compatibility improvements:

    1. Fix Texas Instruments compiler warnings

    2. Fix compilation issues with limits.h for some versions of gcc

    3. Fix compilation issues with Clang/C2

    4. Fix implicit fallthrough warnings in gcc 7

    5. Fix unknown attribute directive warnings in gcc 8

    6. Fix cray++ compiler errors

    7. Fix unsigned integer overflow errors with -fsanitize=integer

    8. Fix undefined behavior sanitizer issues in compact mode

v1.8 2016-11-24

Maintenance release. Changes:

  • Specification changes:

    1. When printing empty elements, a space is no longer added before / in format_raw mode

  • New features:

    1. Added parse_embed_pcdata parsing mode in which PCDATA value is stored in the element node if possible (significantly reducing memory consumption for some documents)

    2. Added auto-detection support for Latin-1 (ISO-8859-1) encoding during parsing

    3. Added format_no_empty_element_tags formatting flag that outputs start/end tags instead of empty element tags for empty elements

  • Performance improvements:

    1. Minor memory allocation improvements (yielding up to 1% memory savings in some cases)

  • Compatibility improvements:

    1. Fixed compilation issues for Borland C++ 5.4

    2. Fixed compilation issues for some distributions of MinGW 3.8

    3. Fixed various Clang/GCC warnings

    4. Enabled move semantics support for XPath objects for MSVC 2010 and above

v1.7 2015-10-19

Major release, featuring performance and memory improvements along with some new features. Changes:

  • Compact mode:

    1. Introduced a new tree storage mode that takes significantly less memory (2-5x smaller DOM) at some performance cost.

    2. The mode can be enabled using PUGIXML_COMPACT define.

  • New integer parsing/formatting implementation:

    1. Functions that convert from and to integers (e.g. as_int/set_value) do not rely on CRT any more.

    2. New implementation is 3-5x faster and is always correct wrt overflow or underflow. This is a behavior change - where previously as_uint() would return UINT_MAX on a value "-1", it now returns 0.

  • New features:

    1. XPath objects (xpath_query, xpath_node_set, xpath_variable_set) are now movable if your compiler supports C++11. Additionally, xpath_variable_set is copyable.

    2. Added format_indent_attributes that makes the resulting XML friendlier to line diff/merge tools.

    3. Added a variant of xml_node::attribute function with a hint that can improve lookup performance.

    4. Custom allocation functions are now allowed (but not required) to throw instead of returning a null pointer.

  • Bug fixes:

    1. Fix Clang 3.7 crashes in out-of-memory cases (C++ DR 1748)

    2. Fix XPath crashes on SPARC64 (and other 32-bit architectures where doubles have to be aligned to 8 bytes)

    3. Fix xpath_node_set assignment to provide strong exception guarantee

    4. Fix saving for custom xml_writer implementations that can throw from write()

v1.6 2015-04-10

Maintenance release. Changes:

  • Specification changes:

    1. Attribute/text values now use more digits when printing floating point numbers to guarantee round-tripping.

    2. Text nodes no longer get extra surrounding whitespace when pretty-printing nodes with mixed contents

  • Bug fixes:

    1. Fixed translate and normalize-space XPath functions to no longer return internal NUL characters

    2. Fixed buffer overrun on malformed comments inside DOCTYPE sections

    3. DOCTYPE parsing can no longer run out of stack space on malformed inputs (XML parsing is now using bounded stack space)

    4. Adjusted processing instruction output to avoid malformed documents if the PI value contains ?>

v1.5 2014-11-27

Major release, featuring a lot of performance improvements and some new features.

  • Specification changes:

    1. xml_document::load(const char_t*) was renamed to load_string; the old method is still available and will be deprecated in a future release

    2. xml_node::select_single_node was renamed to select_node; the old method is still available and will be deprecated in a future release.

  • New features:

    1. Added xml_node::append_move and other functions for moving nodes within a document

    2. Added xpath_query::evaluate_node for evaluating queries with a single node as a result

  • Performance improvements:

    1. Optimized XML parsing (10-40% faster with clang/gcc, up to 10% faster with MSVC)

    2. Optimized memory consumption when copying nodes in the same document (string contents is now shared)

    3. Optimized node copying (10% faster for cross-document copies, 3x faster for inter-document copies; also it now consumes a constant amount of stack space)

    4. Optimized node output (60% faster; also it now consumes a constant amount of stack space)

    5. Optimized XPath allocation (query evaluation now results in fewer temporary allocations)

    6. Optimized XPath sorting (node set sorting is 2-3x faster in some cases)

    7. Optimized XPath evaluation (XPathMark suite is 100x faster; some commonly used queries are 3-4x faster)

  • Compatibility improvements:

    1. Fixed xml_node::offset_debug for corner cases

    2. Fixed undefined behavior while calling memcpy in some cases

    3. Fixed MSVC 2015 compilation warnings

    4. Fixed contrib/foreach.hpp for Boost 1.56.0

  • Bug fixes

    1. Adjusted comment output to avoid malformed documents if the comment value contains --

    2. Fix XPath sorting for documents that were constructed using append_buffer

    3. Fix load_file for wide-character paths with non-ASCII characters in MinGW with C++11 mode enabled

v1.4 2014-02-27

Major release, featuring various new features, bug fixes and compatibility improvements.

  • Specification changes:

    1. Documents without element nodes are now rejected with status_no_document_element error, unless parse_fragment option is used

  • New features:

    1. Added XML fragment parsing (parse_fragment flag)

    2. Added PCDATA whitespace trimming (parse_trim_pcdata flag)

    3. Added long long support for xml_attribute and xml_text (as_llong, as_ullong and set_value/set overloads)

    4. Added hexadecimal integer parsing support for as_int/as_uint/as_llong/as_ullong

    5. Added xml_node::append_buffer to improve performance of assembling documents from fragments

    6. xml_named_node_iterator is now bidirectional

    7. Reduced XPath stack consumption during compilation and evaluation (useful for embedded systems)

  • Compatibility improvements:

    1. Improved support for platforms without wchar_t support

    2. Fixed several false positives in clang static analysis

    3. Fixed several compilation warnings for various GCC versions

  • Bug fixes:

    1. Fixed undefined pointer arithmetic in XPath implementation

    2. Fixed non-seekable iostream support for certain stream types, i.e. Boost file_source with pipe input

    3. Fixed xpath_query::return_type for some expressions

    4. Fixed dllexport issues with xml_named_node_iterator

    5. Fixed find_child_by_attribute assertion for attributes with null name/value

v1.2 2012-05-01

Major release, featuring header-only mode, various interface enhancements (i.e. PCDATA manipulation and C++11 iteration), many other features and compatibility improvements.

  • New features:

    1. Added xml_text helper class for working with PCDATA/CDATA contents of an element node

    2. Added optional header-only mode (controlled by PUGIXML_HEADER_ONLY define)

    3. Added xml_node::children() and xml_node::attributes() for C++11 ranged for loop or BOOST_FOREACH

    4. Added support for Latin-1 (ISO-8859-1) encoding conversion during loading and saving

    5. Added custom default values for xml_attribute::as_* (they are returned if the attribute does not exist)

    6. Added parse_ws_pcdata_single flag for preserving whitespace-only PCDATA in case it’s the only child

    7. Added format_save_file_text for xml_document::save_file to open files as text instead of binary (changes newlines on Windows)

    8. Added format_no_escapes flag to disable special symbol escaping (complements ~parse_escapes)

    9. Added support for loading document from streams that do not support seeking

    10. Added PUGIXML_MEMORY_* constants for tweaking allocation behavior (useful for embedded systems)

    11. Added PUGIXML_VERSION preprocessor define

  • Compatibility improvements:

    1. Parser does not require setjmp support (improves compatibility with some embedded platforms, enables /clr:pure compilation)

    2. STL forward declarations are no longer used (fixes SunCC/RWSTL compilation, fixes clang compilation in C++11 mode)

    3. Fixed AirPlay SDK, Android, Windows Mobile (WinCE) and C++/CLI compilation

    4. Fixed several compilation warnings for various GCC versions, Intel C++ compiler and Clang

  • Bug fixes:

    1. Fixed unsafe bool conversion to avoid problems on C++/CLI

    2. Iterator dereference operator is const now (fixes Boost filter_iterator support)

    3. xml_document::save_file now checks for file I/O errors during saving

v1.0 2010-11-01

Major release, featuring many XPath enhancements, wide character filename support, miscellaneous performance improvements, bug fixes and more.

  • XPath:

    1. XPath implementation is moved to pugixml.cpp (which is the only source file now); use PUGIXML_NO_XPATH if you want to disable XPath to reduce code size

    2. XPath is now supported without exceptions (PUGIXML_NO_EXCEPTIONS); the error handling mechanism depends on the presence of exception support

    3. XPath is now supported without STL (PUGIXML_NO_STL)

    4. Introduced variable support

    5. Introduced new xpath_query::evaluate_string, which works without STL

    6. Introduced new xpath_node_set constructor (from an iterator range)

    7. Evaluation function now accept attribute context nodes

    8. All internal allocations use custom allocation functions

    9. Improved error reporting; now a last parsed offset is returned together with the parsing error

  • Bug fixes:

    1. Fixed memory leak for loading from streams with stream exceptions turned on

    2. Fixed custom deallocation function calling with null pointer in one case

    3. Fixed missing attributes for iterator category functions; all functions/classes can now be DLL-exported

    4. Worked around Digital Mars compiler bug, which lead to minor read overfetches in several functions

    5. load_file now works with 2+ Gb files in MSVC/MinGW

    6. XPath: fixed memory leaks for incorrect queries

    7. XPath: fixed xpath_node() attribute constructor with empty attribute argument

    8. XPath: fixed lang() function for non-ASCII arguments

  • Specification changes:

    1. CDATA nodes containing ]]> are printed as several nodes; while this changes the internal structure, this is the only way to escape CDATA contents

    2. Memory allocation errors during parsing now preserve last parsed offset (to give an idea about parsing progress)

    3. If an element node has the only child, and it is of CDATA type, then the extra indentation is omitted (previously this behavior only held for PCDATA children)

  • Additional functionality:

    1. Added xml_parse_result default constructor

    2. Added xml_document::load_file and xml_document::save_file with wide character paths

    3. Added as_utf8 and as_wide overloads for std::wstring/std::string arguments

    4. Added DOCTYPE node type (node_doctype) and a special parse flag, parse_doctype, to add such nodes to the document during parsing

    5. Added parse_full parse flag mask, which extends parse_default with all node type parsing flags except parse_ws_pcdata

    6. Added xml_node::hash_value() and xml_attribute::hash_value() functions for use in hash-based containers

    7. Added internal_object() and additional constructor for both xml_node and xml_attribute for easier marshalling (useful for language bindings)

    8. Added xml_document::document_element() function

    9. Added xml_node::prepend_attribute, xml_node::prepend_child and xml_node::prepend_copy functions

    10. Added xml_node::append_child, xml_node::prepend_child, xml_node::insert_child_before and xml_node::insert_child_after overloads for element nodes (with name instead of type)

    11. Added xml_document::reset() function

  • Performance improvements:

    1. xml_node::root() and xml_node::offset_debug() are now O(1) instead of O(logN)

    2. Minor parsing optimizations

    3. Minor memory optimization for strings in DOM tree (set_name/set_value)

    4. Memory optimization for string memory reclaiming in DOM tree (set_name/set_value now reallocate the buffer if memory waste is too big)

    5. XPath: optimized document order sorting

    6. XPath: optimized child/attribute axis step

    7. XPath: optimized number-to-string conversions in MSVC

    8. XPath: optimized concat for many arguments

    9. XPath: optimized evaluation allocation mechanism: constant and document strings are not heap-allocated

    10. XPath: optimized evaluation allocation mechanism: all temporaries' allocations use fast stack-like allocator

  • Compatibility:

    1. Removed wildcard functions (xml_node::child_w, xml_node::attribute_w, etc.)

    2. Removed xml_node::all_elements_by_name

    3. Removed xpath_type_t enumeration; use xpath_value_type instead

    4. Removed format_write_bom_utf8 enumeration; use format_write_bom instead

    5. Removed xml_document::precompute_document_order, xml_attribute::document_order and xml_node::document_order functions; document order sort optimization is now automatic

    6. Removed xml_document::parse functions and transfer_ownership struct; use xml_document::load_buffer_inplace and xml_document::load_buffer_inplace_own instead

    7. Removed as_utf16 function; use as_wide instead

v0.9 2010-07-01

Major release, featuring extended and improved Unicode support, miscellaneous performance improvements, bug fixes and more.

  • Major Unicode improvements:

    1. Introduced encoding support (automatic/manual encoding detection on load, manual encoding selection on save, conversion from/to UTF8, UTF16 LE/BE, UTF32 LE/BE)

    2. Introduced wchar_t mode (you can set PUGIXML_WCHAR_MODE define to switch pugixml internal encoding from UTF8 to wchar_t; all functions are switched to their Unicode variants)

    3. Load/save functions now support wide streams

  • Bug fixes:

    1. Fixed document corruption on failed parsing bug

    2. XPath string/number conversion improvements (increased precision, fixed crash for huge numbers)

    3. Improved DOCTYPE parsing: now parser recognizes all well-formed DOCTYPE declarations

    4. Fixed xml_attribute::as_uint() for large numbers (i.e. 232-1)

    5. Fixed xml_node::first_element_by_path for path components that are prefixes of node names, but are not exactly equal to them.

  • Specification changes:

    1. parse() API changed to load_buffer/load_buffer_inplace/load_buffer_inplace_own; load_buffer APIs do not require zero-terminated strings.

    2. Renamed as_utf16 to as_wide

    3. Changed xml_node::offset_debug return type and xml_parse_result::offset type to ptrdiff_t

    4. Nodes/attributes with empty names are now printed as :anonymous

  • Performance improvements:

    1. Optimized document parsing and saving

    2. Changed internal memory management: internal allocator is used for both metadata and name/value data; allocated pages are deleted if all allocations from them are deleted

    3. Optimized memory consumption: sizeof(xml_node_struct) reduced from 40 bytes to 32 bytes on x86

    4. Optimized debug mode parsing/saving by order of magnitude

  • Miscellaneous:

    1. All STL includes except <exception> in pugixml.hpp are replaced with forward declarations

    2. xml_node::remove_child and xml_node::remove_attribute now return the operation result

  • Compatibility:

    1. parse() and as_utf16 are left for compatibility (these functions are deprecated and will be removed in version 1.0)

    2. Wildcard functions, document_order/precompute_document_order functions, all_elements_by_name function and format_write_bom_utf8 flag are deprecated and will be removed in version 1.0

    3. xpath_type_t enumeration was renamed to xpath_value_type; xpath_type_t is deprecated and will be removed in version 1.0

v0.5 2009-11-08

Major bugfix release. Changes:

  • XPath bugfixes:

    1. Fixed translate(), lang() and concat() functions (infinite loops/crashes)

    2. Fixed compilation of queries with empty literal strings ("")

    3. Fixed axis tests: they never add empty nodes/attributes to the resulting node set now

    4. Fixed string-value evaluation for node-set (the result excluded some text descendants)

    5. Fixed self:: axis (it behaved like ancestor-or-self::)

    6. Fixed following:: and preceding:: axes (they included descendent and ancestor nodes, respectively)

    7. Minor fix for namespace-uri() function (namespace declaration scope includes the parent element of namespace declaration attribute)

    8. Some incorrect queries are no longer parsed now (i.e. foo: *)

    9. Fixed text()/etc. node test parsing bug (i.e. foo[text()] failed to compile)

    10. Fixed root step (/) - it now selects empty node set if query is evaluated on empty node

    11. Fixed string to number conversion ("123 " converted to NaN, "123 .456" converted to 123.456 - now the results are 123 and NaN, respectively)

    12. Node set copying now preserves sorted type; leads to better performance on some queries

  • Miscellaneous bugfixes:

    1. Fixed xml_node::offset_debug for PI nodes

    2. Added empty attribute checks to xml_node::remove_attribute

    3. Fixed node_pi and node_declaration copying

    4. Const-correctness fixes

  • Specification changes:

    1. xpath_node::select_nodes() and related functions now throw exception if expression return type is not node set (instead of assertion)

    2. xml_node::traverse() now sets depth to -1 for both begin() and end() callbacks (was 0 at begin() and -1 at end())

    3. In case of non-raw node printing a newline is output after PCDATA inside nodes if the PCDATA has siblings

    4. UTF8 → wchar_t conversion now considers 5-byte UTF8-like sequences as invalid

  • New features:

    1. Added xpath_node_set::operator[] for index-based iteration

    2. Added xpath_query::return_type()

    3. Added getter accessors for memory-management functions

v0.42 2009-09-17

Maintenance release. Changes:

  • Bug fixes:

    1. Fixed deallocation in case of custom allocation functions or if delete[] / free are incompatible

    2. XPath parser fixed for incorrect queries (i.e. incorrect XPath queries should now always fail to compile)

    3. Const-correctness fixes for find_child_by_attribute

    4. Improved compatibility (miscellaneous warning fixes, fixed <cstring> include dependency for GCC)

    5. Fixed iterator begin/end and print function to work correctly for empty nodes

  • New features:

    1. Added PUGIXML_API/PUGIXML_CLASS/PUGIXML_FUNCTION configuration macros to control class/function attributes

    2. Added xml_attribute::set_value overloads for different types

v0.41 2009-02-08

Maintenance release. Changes:

  • Bug fixes:

    1. Fixed bug with node printing (occasionally some content was not written to output stream)

v0.4 2009-01-18

Changes:

  • Bug fixes:

    1. Documentation fix in samples for parse() with manual lifetime control

    2. Fixed document order sorting in XPath (it caused wrong order of nodes after xpath_node_set::sort and wrong results of some XPath queries)

  • Node printing changes:

    1. Single quotes are no longer escaped when printing nodes

    2. Symbols in second half of ASCII table are no longer escaped when printing nodes; because of this, format_utf8 flag is deleted as it’s no longer needed and format_write_bom is renamed to format_write_bom_utf8.

    3. Reworked node printing - now it works via xml_writer interface; implementations for FILE* and std::ostream are available. As a side-effect, xml_document::save_file now works without STL.

  • New features:

    1. Added unsigned integer support for attributes (xml_attribute::as_uint, xml_attribute::operator=)

    2. Now document declaration (<?xml …​?>) is parsed as node with type node_declaration when parse_declaration flag is specified (access to encoding/version is performed as if they were attributes, i.e. doc.child("xml").attribute("version").as_float()); corresponding flags for node printing were also added

    3. Added support for custom memory management (see set_memory_management_functions for details)

    4. Implemented node/attribute copying (see xml_node::insert_copy_* and xml_node::append_copy for details)

    5. Added find_child_by_attribute and find_child_by_attribute_w to simplify parsing code in some cases (i.e. COLLADA files)

    6. Added file offset information querying for debugging purposes (now you’re able to determine exact location of any xml_node in parsed file, see xml_node::offset_debug for details)

    7. Improved error handling for parsing - now load(), load_file() and parse() return xml_parse_result, which contains error code and last parsed offset; this does not break old interface as xml_parse_result can be implicitly casted to bool.

v0.34 2007-10-31

Maintenance release. Changes:

  • Bug fixes:

    1. Fixed bug with loading from text-mode iostreams

    2. Fixed leak when transfer_ownership is true and parsing is failing

    3. Fixed bug in saving (\r and \n are now escaped in attribute values)

    4. Renamed free() to destroy() - some macro conflicts were reported

  • New features:

    1. Improved compatibility (supported Digital Mars C++, MSVC 6, CodeWarrior 8, PGI C++, Comeau, supported PS3 and XBox360)

    2. PUGIXML_NO_EXCEPTION flag for platforms without exception handling

v0.3 2007-02-21

Refactored, reworked and improved version. Changes:

  • Interface:

    1. Added XPath

    2. Added tree modification functions

    3. Added no STL compilation mode

    4. Added saving document to file

    5. Refactored parsing flags

    6. Removed xml_parser class in favor of xml_document

    7. Added transfer ownership parsing mode

    8. Modified the way xml_tree_walker works

    9. Iterators are now non-constant

  • Implementation:

    1. Support of several compilers and platforms

    2. Refactored and sped up parsing core

    3. Improved standard compliancy

    4. Added XPath implementation

    5. Fixed several bugs

v0.2 2006-11-06

First public release. Changes:

  • Bug fixes:

    1. Fixed child_value() (for empty nodes)

    2. Fixed xml_parser_impl warning at W4

  • New features:

    1. Introduced child_value(name) and child_value_w(name)

    2. parse_eol_pcdata and parse_eol_attribute flags + parse_minimal optimizations

    3. Optimizations of strconv_t

v0.1 2006-07-15

First private release for testing purposes

10. API Reference

This is the reference for all macros, types, enumerations, classes and functions in pugixml. Each symbol is a link that leads to the relevant section of the manual.

10.2. Types

typedef configuration-defined-type char_t;
typedef configuration-defined-type string_t;
typedef void* (*allocation_function)(size_t size);
typedef void (*deallocation_function)(void* ptr);

10.4. Constants

// Formatting options bit flags:
const unsigned int format_attribute_single_quote
const unsigned int format_default
const unsigned int format_indent
const unsigned int format_indent_attributes
const unsigned int format_no_declaration
const unsigned int format_no_empty_element_tags
const unsigned int format_no_escapes
const unsigned int format_raw
const unsigned int format_save_file_text
const unsigned int format_skip_control_chars
const unsigned int format_write_bom

// Parsing options bit flags:
const unsigned int parse_cdata
const unsigned int parse_comments
const unsigned int parse_declaration
const unsigned int parse_default
const unsigned int parse_doctype
const unsigned int parse_eol
const unsigned int parse_escapes
const unsigned int parse_fragment
const unsigned int parse_full
const unsigned int parse_minimal
const unsigned int parse_pi
const unsigned int parse_trim_pcdata
const unsigned int parse_ws_pcdata
const unsigned int parse_ws_pcdata_single
const unsigned int parse_embed_pcdata
const unsigned int parse_merge_pcdata
const unsigned int parse_wconv_attribute
const unsigned int parse_wnorm_attribute

10.5. Classes

class xml_attribute
    xml_attribute();

    bool empty() const;
    operator unspecified_bool_type() const;

    bool operator==(const xml_attribute& r) const;
    bool operator!=(const xml_attribute& r) const;
    bool operator<(const xml_attribute& r) const;
    bool operator>(const xml_attribute& r) const;
    bool operator<=(const xml_attribute& r) const;
    bool operator>=(const xml_attribute& r) const;

    size_t hash_value() const;

    xml_attribute next_attribute() const;
    xml_attribute previous_attribute() const;

    const char_t* name() const;
    const char_t* value() const;

    const char_t* as_string(const char_t* def = "") const;
    int as_int(int def = 0) const;
    unsigned int as_uint(unsigned int def = 0) const;
    double as_double(double def = 0) const;
    float as_float(float def = 0) const;
    bool as_bool(bool def = false) const;
    long long as_llong(long long def = 0) const;
    unsigned long long as_ullong(unsigned long long def = 0) const;

    bool set_name(const char_t* rhs);
    bool set_name(const char_t* rhs, size_t size);
    bool set_value(const char_t* rhs);
    bool set_value(const char_t* rhs, size_t size);
    bool set_value(int rhs);
    bool set_value(unsigned int rhs);
    bool set_value(long rhs);
    bool set_value(unsigned long rhs);
    bool set_value(double rhs);
    bool set_value(float rhs);
    bool set_value(bool rhs);
    bool set_value(long long rhs);
    bool set_value(unsigned long long rhs);

    xml_attribute& operator=(const char_t* rhs);
    xml_attribute& operator=(int rhs);
    xml_attribute& operator=(unsigned int rhs);
    xml_attribute& operator=(long rhs);
    xml_attribute& operator=(unsigned long rhs);
    xml_attribute& operator=(double rhs);
    xml_attribute& operator=(float rhs);
    xml_attribute& operator=(bool rhs);
    xml_attribute& operator=(long long rhs);
    xml_attribute& operator=(unsnigned long long rhs);

class xml_node
    xml_node();

    bool empty() const;
    operator unspecified_bool_type() const;

    bool operator==(const xml_node& r) const;
    bool operator!=(const xml_node& r) const;
    bool operator<(const xml_node& r) const;
    bool operator>(const xml_node& r) const;
    bool operator<=(const xml_node& r) const;
    bool operator>=(const xml_node& r) const;

    size_t hash_value() const;

    xml_node_type type() const;

    const char_t* name() const;
    const char_t* value() const;

    xml_node parent() const;
    xml_node first_child() const;
    xml_node last_child() const;
    xml_node next_sibling() const;
    xml_node previous_sibling() const;

    xml_attribute first_attribute() const;
    xml_attribute last_attribute() const;

    implementation-defined-type children() const;
    implementation-defined-type children(const char_t* name) const;
    implementation-defined-type attributes() const;

    xml_node child(const char_t* name) const;
    xml_attribute attribute(const char_t* name) const;
    xml_node next_sibling(const char_t* name) const;
    xml_node previous_sibling(const char_t* name) const;

    xml_attribute attribute(const char_t* name, xml_attribute& hint) const;

    xml_node find_child_by_attribute(const char_t* name, const char_t* attr_name, const char_t* attr_value) const;
    xml_node find_child_by_attribute(const char_t* attr_name, const char_t* attr_value) const;

    const char_t* child_value() const;
    const char_t* child_value(const char_t* name) const;
    xml_text text() const;

    typedef xml_node_iterator iterator;
    iterator begin() const;
    iterator end() const;

    typedef xml_attribute_iterator attribute_iterator;
    attribute_iterator attributes_begin() const;
    attribute_iterator attributes_end() const;

    bool traverse(xml_tree_walker& walker);

    template <typename Predicate> xml_attribute find_attribute(Predicate pred) const;
    template <typename Predicate> xml_node find_child(Predicate pred) const;
    template <typename Predicate> xml_node find_node(Predicate pred) const;

    string_t path(char_t delimiter = '/') const;
    xml_node xml_node::first_element_by_path(const char_t* path, char_t delimiter = '/') const;
    xml_node root() const;
    ptrdiff_t offset_debug() const;

    bool set_name(const char_t* rhs);
    bool set_name(const char_t* rhs, size_t size);
    bool set_value(const char_t* rhs);
    bool set_value(const char_t* rhs, size_t size);

    xml_attribute append_attribute(const char_t* name);
    xml_attribute prepend_attribute(const char_t* name);
    xml_attribute insert_attribute_after(const char_t* name, const xml_attribute& attr);
    xml_attribute insert_attribute_before(const char_t* name, const xml_attribute& attr);

    xml_node append_child(xml_node_type type = node_element);
    xml_node prepend_child(xml_node_type type = node_element);
    xml_node insert_child_after(xml_node_type type, const xml_node& node);
    xml_node insert_child_before(xml_node_type type, const xml_node& node);

    xml_node append_child(const char_t* name);
    xml_node prepend_child(const char_t* name);
    xml_node insert_child_after(const char_t* name, const xml_node& node);
    xml_node insert_child_before(const char_t* name, const xml_node& node);

    xml_attribute append_copy(const xml_attribute& proto);
    xml_attribute prepend_copy(const xml_attribute& proto);
    xml_attribute insert_copy_after(const xml_attribute& proto, const xml_attribute& attr);
    xml_attribute insert_copy_before(const xml_attribute& proto, const xml_attribute& attr);

    xml_node append_copy(const xml_node& proto);
    xml_node prepend_copy(const xml_node& proto);
    xml_node insert_copy_after(const xml_node& proto, const xml_node& node);
    xml_node insert_copy_before(const xml_node& proto, const xml_node& node);

    xml_node append_move(const xml_node& moved);
    xml_node prepend_move(const xml_node& moved);
    xml_node insert_move_after(const xml_node& moved, const xml_node& node);
    xml_node insert_move_before(const xml_node& moved, const xml_node& node);

    bool remove_attribute(const xml_attribute& a);
    bool remove_attribute(const char_t* name);
    bool remove_attributes();
    bool remove_child(const xml_node& n);
    bool remove_child(const char_t* name);
    bool remove_children();

    xml_parse_result append_buffer(const void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);

    void print(xml_writer& writer, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto, unsigned int depth = 0) const;
    void print(std::ostream& os, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto, unsigned int depth = 0) const;
    void print(std::wostream& os, const char_t* indent = "\t", unsigned int flags = format_default, unsigned int depth = 0) const;

    xpath_node select_node(const char_t* query, xpath_variable_set* variables = 0) const;
    xpath_node select_node(const xpath_query& query) const;
    xpath_node_set select_nodes(const char_t* query, xpath_variable_set* variables = 0) const;
    xpath_node_set select_nodes(const xpath_query& query) const;

class xml_document
    xml_document();
    ~xml_document();

    void reset();
    void reset(const xml_document& proto);

    xml_parse_result load(std::istream& stream, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
    xml_parse_result load(std::wistream& stream, unsigned int options = parse_default);

    xml_parse_result load_string(const char_t* contents, unsigned int options = parse_default);

    xml_parse_result load_file(const char* path, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
    xml_parse_result load_file(const wchar_t* path, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);

    xml_parse_result load_buffer(const void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
    xml_parse_result load_buffer_inplace(void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);
    xml_parse_result load_buffer_inplace_own(void* contents, size_t size, unsigned int options = parse_default, xml_encoding encoding = encoding_auto);

    bool save_file(const char* path, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;
    bool save_file(const wchar_t* path, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;

    void save(std::ostream& stream, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;
    void save(std::wostream& stream, const char_t* indent = "\t", unsigned int flags = format_default) const;

    void save(xml_writer& writer, const char_t* indent = "\t", unsigned int flags = format_default, xml_encoding encoding = encoding_auto) const;

    xml_node document_element() const;

struct xml_parse_result
    xml_parse_status status;
    ptrdiff_t offset;
    xml_encoding encoding;

    operator bool() const;
    const char* description() const;

class xml_node_iterator
class xml_attribute_iterator

class xml_tree_walker
    virtual bool begin(xml_node& node);
    virtual bool for_each(xml_node& node) = 0;
    virtual bool end(xml_node& node);

    int depth() const;

class xml_text
    bool empty() const;
    operator xml_text::unspecified_bool_type() const;

    const char_t* xml_text::get() const;

    const char_t* as_string(const char_t* def = "") const;
    int as_int(int def = 0) const;
    unsigned int as_uint(unsigned int def = 0) const;
    double as_double(double def = 0) const;
    float as_float(float def = 0) const;
    bool as_bool(bool def = false) const;
    long long as_llong(long long def = 0) const;
    unsigned long long as_ullong(unsigned long long def = 0) const;

    bool set(const char_t* rhs);
    bool set(const char_t* rhs, size_t size);

    bool set(int rhs);
    bool set(unsigned int rhs);
    bool set(long rhs);
    bool set(unsigned long rhs);
    bool set(double rhs);
    bool set(float rhs);
    bool set(bool rhs);
    bool set(long long rhs);
    bool set(unsigned long long rhs);

    xml_text& operator=(const char_t* rhs);
    xml_text& operator=(int rhs);
    xml_text& operator=(unsigned int rhs);
    xml_text& operator=(long rhs);
    xml_text& operator=(unsigned long rhs);
    xml_text& operator=(double rhs);
    xml_text& operator=(float rhs);
    xml_text& operator=(bool rhs);
    xml_text& operator=(long long rhs);
    xml_text& operator=(unsigned long long rhs);

    xml_node data() const;

class xml_writer
    virtual void write(const void* data, size_t size) = 0;

class xml_writer_file: public xml_writer
    xml_writer_file(void* file);

class xml_writer_stream: public xml_writer
    xml_writer_stream(std::ostream& stream);
    xml_writer_stream(std::wostream& stream);

struct xpath_parse_result
    const char* error;
    ptrdiff_t offset;

    operator bool() const;
    const char* description() const;

class xpath_query
    explicit xpath_query(const char_t* query, xpath_variable_set* variables = 0);

    bool evaluate_boolean(const xpath_node& n) const;
    double evaluate_number(const xpath_node& n) const;
    string_t evaluate_string(const xpath_node& n) const;
    size_t evaluate_string(char_t* buffer, size_t capacity, const xpath_node& n) const;
    xpath_node_set evaluate_node_set(const xpath_node& n) const;
    xpath_node evaluate_node(const xpath_node& n) const;

    xpath_value_type return_type() const;

    const xpath_parse_result& result() const;
    operator unspecified_bool_type() const;

class xpath_exception: public std::exception
    virtual const char* what() const throw();

    const xpath_parse_result& result() const;

class xpath_node
    xpath_node();
    xpath_node(const xml_node& node);
    xpath_node(const xml_attribute& attribute, const xml_node& parent);

    xml_node node() const;
    xml_attribute attribute() const;
    xml_node parent() const;

    operator unspecified_bool_type() const;
    bool operator==(const xpath_node& n) const;
    bool operator!=(const xpath_node& n) const;

class xpath_node_set
    xpath_node_set();
    xpath_node_set(const_iterator begin, const_iterator end, type_t type = type_unsorted);

    typedef const xpath_node* const_iterator;
    const_iterator begin() const;
    const_iterator end() const;

    const xpath_node& operator[](size_t index) const;
    size_t size() const;
    bool empty() const;

    xpath_node first() const;

    enum type_t {type_unsorted, type_sorted, type_sorted_reverse};
    type_t type() const;
    void sort(bool reverse = false);

class xpath_variable
    const char_t* name() const;
    xpath_value_type type() const;

    bool get_boolean() const;
    double get_number() const;
    const char_t* get_string() const;
    const xpath_node_set& get_node_set() const;

    bool set(bool value);
    bool set(double value);
    bool set(const char_t* value);
    bool set(const xpath_node_set& value);

class xpath_variable_set
    xpath_variable* add(const char_t* name, xpath_value_type type);

    bool set(const char_t* name, bool value);
    bool set(const char_t* name, double value);
    bool set(const char_t* name, const char_t* value);
    bool set(const char_t* name, const xpath_node_set& value);

    xpath_variable* get(const char_t* name);
    const xpath_variable* get(const char_t* name) const;

10.6. Functions

std::string as_utf8(const wchar_t* str);
std::string as_utf8(const std::wstring& str);
std::wstring as_wide(const char* str);
std::wstring as_wide(const std::string& str);
void set_memory_management_functions(allocation_function allocate, deallocation_function deallocate);
allocation_function get_memory_allocation_function();
deallocation_function get_memory_deallocation_function();

1. All trademarks used are properties of their respective owners.
